HY-1510BVF-7 Sewing machine supplier from China direct drive single needle heavy duty sewing-machine

Product Description

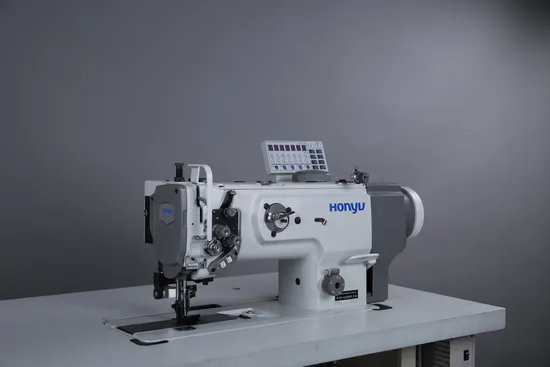

WALKING FOOT LEATHER SEWING MACHINE, HEAVY DUTY SEWING MACHINE FOR SOFA HY-1510BVF-7 Direct drive, single needle compound feed sewing machine with right cutter and auto trimmer

Model No.	HY-1510BVF-7
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2000 s.p.m
Shuttle diameter	Ф28mm
Applied needle	DP×17 #18-#23
Thread size	Maximum thread 9 strands nylon
Max stitch length	9mm
Max alternating presser foot	6.5mm Manually adjusted by knob
Max presser foot lifting height	16mm
Auto back tacking & trimming	√
Presser foot lifting height by air	√
Auto oil system	√
DL function	√
Operation space	255×103mm

Product Description:
1. The right cutting special structure design can trim the right side of the material during sewing.
2. The side cutting has reliable performance, according to the sewing process, the function can be turned on or off by shortcut keys.
3. It is equipped with auto back tacking,auto back tacking, pneumatic presser foot lifting, auto oil supply, up and down needle positioning and other practical functions.
4. Vertical knife trim the edge smoothly without bevel.
5. Standard needle gauge set cutting width is 5mm.
Typical Field of Application:
Edge trimming and special process for sofa, car interior or the same field products.
Product Advantages: 1.The right cutting special structure: (1) The right cutting special structure design can make right side trimming while sewing, improves efficiency.
(2) According to sewing requirements, the cutter function can be switched on and off individually by shortcut keys.
2.Setting and changing the amount of presser foot up and down simply:
The upper and lower alternating amount of the inner and outer presser foot can be easily set by the large dial on the top of the machine head. Manually rotate the dial to adjust the alternating amount of presser foot height 1-6.5mm.
3.Precise thread trimmer:
Special trimming structure design improves the usage efficiency of thread.
4.Needle gauge set:
The maximum stitch length is 8mm when the needle gauge set cutting width is 5mm, the maximum stitch length is 6mm when the cutting width is 2.5mm, the maximum stitch length is 3mm when the cutting width is 1.5mm.
