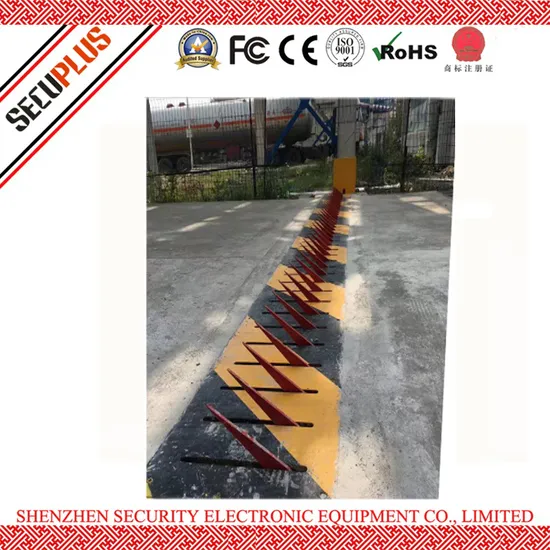

Vehicle Barriers & Spike Strips Tire Killer For Entrance Security Control SPT-740

Product Description

Vehicle Barriers & Spike Strips Tire Killer For Entrance Security Control SPT-740
Hydraulic road blocker (also known as anti-terrorism wall or road blockers). It is divided into heavy,
standard type, all based on the hydraulic lift. Mainly to prevent non-permitted vehicles forcibly entered, with high availability, reliability, security, according to the site and customer needs with a variety of configurations to choose from and can be customized to meet the functional requirements of various customers.When equipped with an emergency release system in case of power outages and other emergency situations, down to an open channel, so that vehicles could pass normally.
General Specifications:

Overall size	5000 * 650 * 90mm
Anti-collision levels	K8
Interception width	6300mm (including motor)
Panel thickness	16mm
Interval of the spike	150mm
Spike piercing thickness	10mm(14/16/20mm in options)
Spike thighs increased	150mm
Overall material	A3 steel
Main frame width	650mm
Main frame height	90mm
Operating temperature	-35 ºC ~ 75 ºC
Rise speed	2S
Waterproof rating	IP68
Anti-collision warning	black reflective film
Supply voltage	220V

Hydraulic road blocker installation
1. Installation requires interception pavement width
According to the customers's actual width of the selected intersection,traffic spikes intercept width.
Standard size: 2.5m/3m/3.5m/4m/4.5m/5.5m
2. Installation of environmental requirements
1) An intersection of roads need to be installed must have sufficient flatness.
2) Install the horse must be a concrete pouring pavement, (because you want to play on the road expansion bolts)
3) If the road is not the concrete pouring, do local casting, (need to play the position bolts made of cement pavement c25Above grade cement)Junction or gate 3 must be installed in the power supply is available. (220v)
4 ) road side mounting breaking child transmission of sufficient installed workstation space (control cabinet) 0.7x0.7
meters.

---
