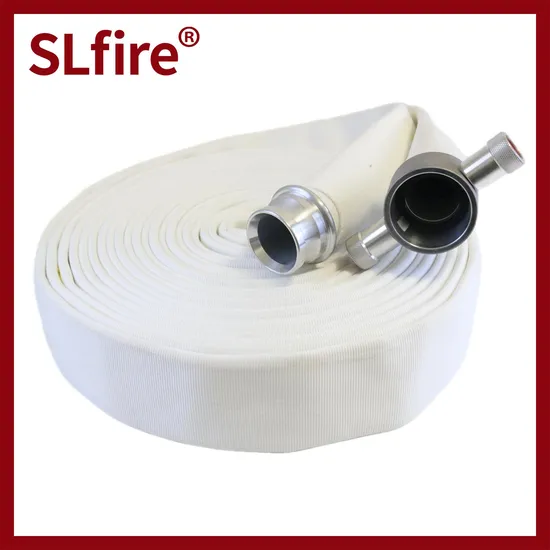

UL/FM Certificate Rubber Covered Durable Attack Fire Hose with BS Instantaneous Coupling
Jacket: 100% filament polyester are combined with filament polyester,single jacket,twill weaving
Lining: PVC It creates an extremely smooth waterway surface, thereby significantly reducing friction loss and improving flow characteristics. The vulcanized adhesion system creates both a mechanical and chemical bond between the PVC lining and the inner jacket, eliminating the possibility of delamination as is experienced with competitive adhesive bonded rubber constructions.
Engineered to offer exceptional ozone resistance, our hose also provides outstanding acid and alkali resistance, making it a reliable choice for various environments.
Experience optimal performance even in low temperatures, with a design that guarantees a long service life, offering both durability and resilience.
Standard Length: Available in versatile sizes of 15M (50 feet), 20M (66 feet), 25M (82 feet), and 30M (100 feet) to meet diverse needs.
Temperature Range: Can withstand a wide temperature range from -40°F to 158°F (-40°C to 70°C), with the option for customized temperature ranges upon request.
Color: Offered in a variety of colors including White, Red, and Yellow, with additional color options available at your request.
| Inner diameter | Working pressure | Bursting pressure |
| inch | mm | Psi/Bar | Psi/Bar |
| 1" | 25 | 150/10, 190/13, 220/15, 300/21,400/28,etc | 450/30, 570/39, 660/45, 900/63,1200/84,etc |
| 1 1/2" | 40 | 150/10, 190/13, 220/15, 300/21,400/28,etc | 450/30, 570/39, 660/45, 900/63,1200/84,etc |
| 1 3/4" | 45 | 150/10, 190/13, 220/15, 300/21,400/28,etc | 450/30, 570/39, 660/45, 900/63,1200/84,etc |
| 2" | 50 | 150/10, 190/13, 220/15, 300/21,400/28,etc | 450/30, 570/39, 660/45, 900/63,1200/84,etc |
| 2 1/2" | 65 | 150/10, 190/13, 220/15, 300/21,400/28,etc | 450/30, 570/39, 660/45, 900/63,1200/84,etc |
| 2 3/4" | 70 | 150/10, 190/13, 220/15, 300/21,400/28,etc | 450/30, 570/39, 660/45, 900/63,1200/84,etc |
| 3" | 75 | 150/10, 190/13, 220/15, 300/21,400/28,etc | 450/30, 570/39, 660/45, 900/63,1200/84,etc |
| 4" | 102 | 150/10, 190/13, 220/15, 300/21 | 450/30, 600/42, 660/45, 750/51 |
| 6" | 152 | 150/10, 190/13, 220/15, 300/21 | 450/30, 600/42, 660/45, 750/51 |
