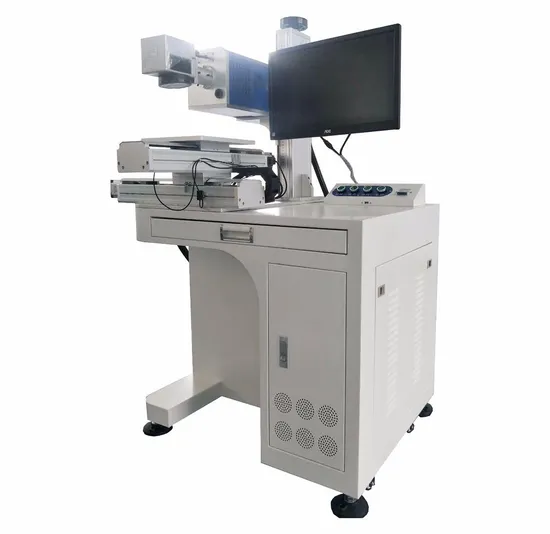

Xy Axis Carbon Dioxide Marking Machine

Product Description

Product Description
Applications:
The carbon dioxide laser marking machine can engrave a variety of non-metallic materials. It is widely used in craft gifts, fixtures, leather clothing, advertising signs, model making, food and drug packaging, glasses, buttons, crystals, label paper, glass ceramics, bamboo and wood products. Jade, jade, packaging and printing, garment embroidery, model, product identification, serial number, etc.
Features:
Using the imported CO2 radio frequency laser from the United States, it has long life, thin lines, stable equipment, maintenance-free, and good marking results;
Fully enclosed maintenance-free laser optical system, no need to adjust, confirm the stability of the whole system, install and use, easy to use
Professional high-speed galvanometer scanning system to ensure high-speed, high-precision, large-format marking;
Windows] Application system supported by operating system, flexible and simple operation interface, open system supports automation equipment integration;

Laser max power	30W	50W
Laser wavelength	10.6μm	10.6μm
Beam quality	m²<1.2	m²<1.2
Repeat frequency	≤30KHz	≤30KHz
Carving range	≤300*300mm	≤300*300mm
Engraving speed	250characters/SEC	300characters/SEC
Minimum line width	0.06mm	0.06mm
Repeat Accuracy	±0.003mm	±0.003mm
Machine Power	1KW	2KW
Electricity demand	220V/50HZ	220V/50HZ
Cooling mode	Air cooling	Water cooling

Detailed Photos
Exhibition & Customers
Field Application

FAQ
Q1:How to choose a suitable machine?
A1:You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2:What is the warranty period for the equipment?
A2:One year warranty and 24 hours online professional technical support. Q3:How to choose a suitable machine? A3:You can tell us the request of machine function. We can recommend the most suitable machine according to our experience.

---
