View Stripe Bottles Extrusion Blow Molding Machine

Product Description

CHANGZHOU LOYALTY INDUSTRY CO.,LIMITED is specialized in Extrusion Blow Molding field. We provide blow molding machines, hollow moulds, auxiliary machines, special processing devices and project service for your production plans.

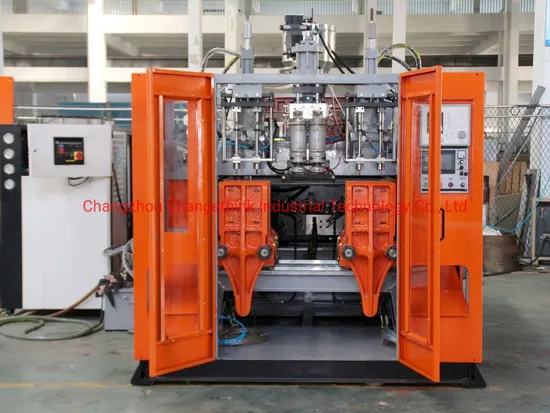

1	LTY70D is double station view stripe extrusion blow molding machine max for 5L.
2	The output for 160 grams 5L jerrycan is 215 Pcs/hr, for 135 grams 3L is 250 Pcs/hour.
3	With double head output for 1L jerrycan is 550 Pcs/hour, for 1L bottle is 625 Pcs/hour.
4	Head material runner design is reasonable with fine process for changing color quickly.
5	Extrusion system is composed of 70mm main screw and 25mm view stripe screw.
6	Adopt axial type translational clamping unit guided with linear rails for stable moving.
7	With two pneumatic cylinder for head lifting in balance, clean & easy for maintenance.
8	Optimized hydraulic system with pressure, flow and time 3 factors for better control.
9	High speed responding machine total control system with 20 mould formula saving.
10	Lubrication system, product collection shelves and scraps slide channels are included.

We a professional manufacturer of Extrusion Blow Molding Machines, owning more than 16 years working experience in EBM machines' design, manufacturing, overhauling, service and project solutions. Our product line covers 0~30L continuous EBM models, high speed automatic EBM models, 30~500L accumulating EBM models, 1000~3000L large EBM models. Our machines are widely used in packing and producing industries of chemical, food & drinking, medical, automobile, traffic safety, recreation facility, family life and communal facilities. We provide the entire solutions for a whole producing line of project items.
Besides our Chinese domestic market, our blow molding machines also have been exported to Europ, Mid East, Africa, South America and Asia countries. The service covers product analysis, project sonsultation, manufacturing follow-up, exporting and after sales services.
We have mature technology and technics for multi-layer co-extrusion, high speed and high automatic blow molding machines, also can help our customers for producing line layout and producing flow arrangement. Our machines' quality is good and reliable, the working lifespan is more than 20 years. We hope to establish long term cooperation relationship with you and keep developing together.

COMPONENTS	BRAND	ORIGIN
MACHINE TOTAL CONTROL	WISETECH	HONGKONG
7.5" COLORFUL TOUCH SCREEN	WISETECH	HONGKONG
TEMPERATURE CONTROL MODULE	WISETECH	HONGKONG
CONTRACTOR	SCHNEIDER	FRANCE/CHINA
AIR SWITCH	SCHNEIDER	FRANCE/CHINA
FUSE KIT	SCHNEIDER	FRANCE/CHINA
PROXIMITY SWITCH	RIKO	TAIWAN
INVERTER	DELTA	TAIWAN
SEAL PARTS	DZ	TAIWAN
HYDRAULIC PUMP	YUKEN	TAIWAN
HYDRAULIC VALVE	YUKEN	TAIWAN
PNEUMATIC VALVE	AIRTAC	TAIWAN
PNEUMATIC CYLINDER	AIRTAC	TAIWAN
COMPRESSED AIR FILTER	AIRTAC	TAIWAN
LINEAR GUIDE RAILS	HIWIN	TAIWAN
HARD GEAR BOX	HAOKE	CHINA
EXTRUSION MOTOR	WANNAN	CHINA
HYDRAULIC MOTOR	WANNAN	CHINA

	SPECIFICATIOIN	/PARAMETER
	Max Product Volume	5.0 L
	Dry Cycle Time	7.0 Second
	Pre-heating Time	2.0~2.5 Hours
	Machine Weight	5.5 Tons
	Machine Size	3.8*2.2*2.4 m
/EXTRUSION UNIT
	Screw Diameter	70 mm		25 mm
	Length/Diameter Ratio	24:1		25:1
	Heating Zone No.	3		2
	Heating Power	14.2 KW		1.2 KW
	Cooling Fan No.	3		-
	Fan Power	0.45 KW		-
	Extrusion Motor Power	22 KW		1.5 KW
	Plasticizing Capacity	80 KG		7 Kg
/CLAMPING UNIT
	Clamping Force	68 KN
	Platen Size	320*390 mm
	Platen Moving Distance	420 mm
	Platen Opening Stroke	150-500 mm
	Max Mould Size	350*390 mm
	Mould Thickness	155-320 mm
/HEAD UNIT
	Head Type	Continuous Extrusion Head
	Head Cavity No.	1	2
	Central Distance	-	160 mm
	Product Max Width	225 mm	135 mm
	Max Die Diameter	150 mm	85 mm
	Heating Zone No.	2+1	2+1
	Heating Power	3 KW	3 KW
/ENERGY CONSUMPTION
	Extrusion Motor Power	23.5 KW
	Oil Pump Motor Power	7.5 KW
	Extrusion Heating Power	15.4 KW
	Head Heating Power	3 KW
	Cooling Fan Power	0.45 KW
	Total Power	49.85 KW
	Average Energy Consumption	32.5 KW
/REFERENCE
	Cold Water Needed	0.2-0.3 Mpa			3000 L/h
	Compressed Air Needed	0.8 Mpa			0.8 m3/min
	Installation Capacity	125 Amp, 3*25 m+ 1*16 m
	Loading Reference	20' GP*1

ITEMS	SPECIFICATIONS
Target Product	5L	4L	3L	2L	1L
Mould Cavity No.	1	1	1	1	1
Product Material	HDPE	HDPE	HDPE	HDPE	HDPE
Product Weight	160 Gr	145 Gr	135 Gr	120 Gr	65 Gr
Estimated Cycle Time	33"	31"	28.5"	27"	25"
Estimated Output	218 P/hr	232 P/hr	252 P/hr	266 P/hr	288 P/hr
Mould Design	Made According to Sample or Product 3D Drawing
Cavity Material	Steel S50C in Modulation
Scraps Blades Material	Steel S50C in Modulation
Mould Carrier Material	Steel S45C
Blade Hardness	33 Hrc
Neck Ring Hardness	45 Hrc
Cavity Surface Process	Sand-blast with Reasonable Air Exhausting Design
Cold Water Runner	Separate Cooling Runners
Mould Structure	Main Cavity Mould + Scraps Auto-moving Device
Mould Lifespan	>1,000,000 Working Times

---
