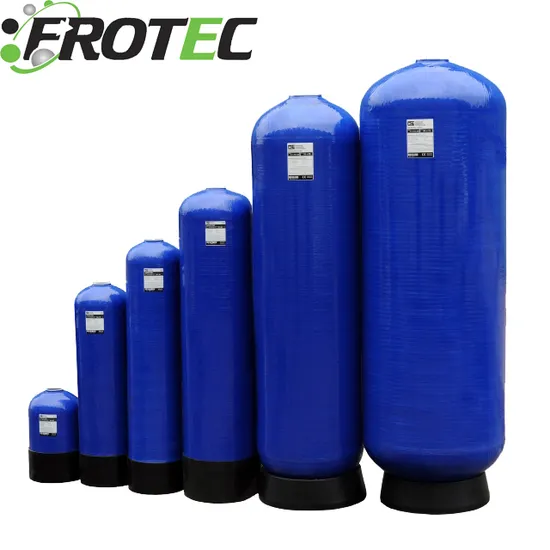

2465 Pressure Vessel FRP Tank for Industrial Water Purification

Product Description

FRP Tank 1. Pressure tanks are made of high performance composite material with FRP filament winding. All the pressure tanks are 100% corrosion resistant.2. All thread inlet made from 30% glass filled PP provides higher strength, temperature, and pressure limits verus glass filled PE.3. Liner wall thickness available from 0.15: (3.0mm) to 0.3"(7.6mm) corresponding to the tank diameter.4. Full line of pressure tanks from 6" to 63" in diameter and from 10" to 86" in height.5. Operating Pressure: 150psi(10.5bar)6. Operating temperature: 120F(49° C)
Product Description


High Performance No pollution Natural FRP Pressure Tanks for water softner

Tank Size		Top Opening	Bottom Opening	Capacity (L)	Tank Size		Top Opening	Bottom Opening	Capacity (L)
Inch	MM				Inch	MM
8*17	200*450	2.5	/	11.5	6*10	156*259	2.5	/	8.5
8*35	200*890	2.5	/	24.5	6*35	156*894	2.5	/	9.5
8*44	200*1100	2.5	/	32.9	7*30	180*762	2.5	/	10.5
9*35	255*890	2.5	/	31.5	30*72	750*1850	4	4	650
10*17	250*450	2.5	/	18	30*77	750*1950	4	4	690
10*35	250*890	2.5	/	38.5	30*87	750*2200	4	4	750
10*52	250*1370	2.5	/	62	36*65	906*1900	4	4	780
12*52	300*1370	2.5	/	83	36*72	900*1850	4	4	950
12*65	300*1650	2.5	/	112	36*87	900*2200	4	4	1060
13*54	330*1370	2.5	/	104	36*94	900*2400	4	4	1100
14*65	350*1650	2.5	/	154	40*65	985*1940	4	4	1150
16*65	420*1668	2.5	/	185	40*79	985*2000	4	4	1300
16*65	420*1668	4	/	185	40*79	1000*2400	6	6	1350
18*65	463*1655	4	/	240	48*72	1200*2200	6FL	6FL	1750
18*65	463*1873	4	4	290	60*79	1200*2400	6FL	6FL	2000
20*69	510*1770	4	4	410	72*79	1500*2400	6FL	6FL	3500
24*72	612*2080	4	4	420

Features
* Frotec frp tanks are made of high quality composite materials HDPE liner, with blow molding technique, it provides continuous seamless inner liner shell.
*Epoxy resin system and FRP filament winding outer shell, which reinforces the liner and provides strong strength for
high pressure application.

Detailed Photos

---
