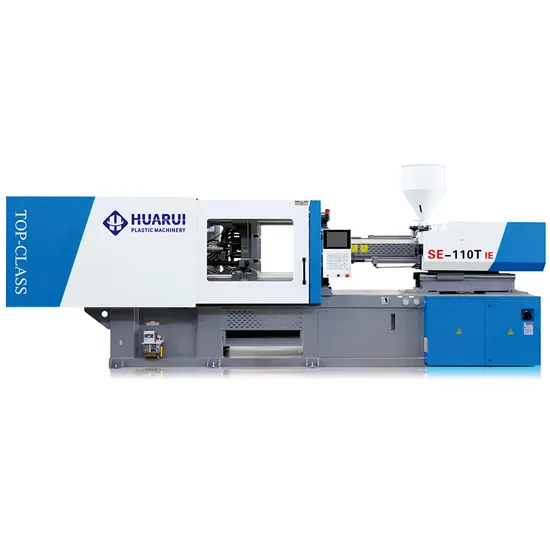

High-Speed Energy Saving Servo Horizontal Pet Preform Making Injection Molding Machine

Product Description

High-Speed Energy Saving Servo Horizontal Pet Preform Making Injection Molding Machine
Product Parameters

SE-110T/IE Plastic Injection Molding Machine
Item		Unit		AA			A
Screw diameter		mm		28			32
Theoretical shot volume		cm³		99			129
Shot weight (PS)		g		90			117
Shot weight (PS)		oz		3.2			4.1
Length/Diameter ratio		L/D		22			22
Injection pressure		Bar		2795			2140
Injection rate		cm³/sec		200/350
Max.screw speed		rpm		400
Clamping force		KN		1100
Max.daylight		mm		590*540
Open stroke		mm		350
Space Between Tie-bars		mm		410*360
Min mould dimension		mm		170
Mould thickness range		mm		420
Ejector force		KN		40
Ejector stroke		mm		110
No.of ejector pins		unit		5
Motor power		KW		32
System pressure		MPa		175
Heater input power		KW		6.3
Oil filling capacity		L		150
Machine size		M		4.6*1.2*1.9
Net weight		KG		4200

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
