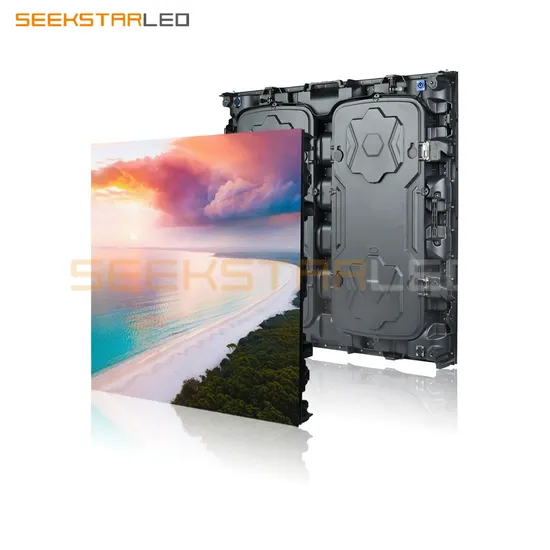

IP65 Waterproof Outdoor Large LED Video Wall Digital Advertising Display Screen Billboard P4

Product Description

Description:
IP65 Waterproof Outdoor Large LED Video Wall Digital Advertising Display Screen Billboard p4
LED outdoor LED display area is generally dozens of square meters to hundreds of square meters or even larger, high brightness, large Angle of view can work in the sun, with a certain wind, rain, waterproof function. Mainly used for outdoor advertising, stations, squares, shopping malls and so on.
LED display screens are widely used in government agencies for government affairs, stations, banks, taxation, post and telecommunications, hospitals, customs, securities markets, bidding markets, schools, factories, ports, stadiums, airports, industry and commerce, taxation, customs, monitoring centers and advertising. The entertainment industry, and real estate trading centers and other window industries that need publicity, as well as highways, urban traffic management, urban environmental index display, etc.
Specification:

SMD Outdoor Full Color LED Display
Product Items	P2.5	P3	P4	P5	P6	P8	P10
Pixel Pitch	2.5mm	3mm	4mm	5mm	6mm	8mm	10mm
LED Type LED	RGB 3in1	RGB 3in1	RGB 3in1	RGB 3in1	RGB 3in1	RGB 3in1	RGB 3in1
LED Life LED	100,000 hours	100,000 hours	100,000 hours	100,000 hours	100,000 hours	100,000 hours	100,000 hours
Configuration	SMD2121	SMD2121	SMD2121	SMD2525	SMD3535	SMD3535	SMD3535
Module Size(mm)	320x160	192x192	256x128	160x160	192x192	256x128	320x160
Module Resolution	128x64	64x64	64x32	32x32	32x32	32x16	32x16
Pixel Density (dots/sqm)	160,000	111,111	62,500	40,000	27,777	15,625	10,000
Brightness (cd/sqm)	>2500	>2500	>6000	>5500	>6500	>6000	>5000
Viewing Distance	>2.5m	>3m	>8m	>10m	>12m	>16m	>10m
Viewing Angle	H: 140°; V: 140°	H: 140°; V: 140°	H: 140°; V: 140°	H: 140°; V: 140°	H: 140°; V: 140°	H: 140°; V: 140°	H: 140°; V: 140°
Refresh Rate	≥960 HZ	≥960 HZ	≥960 HZ	≥960 HZ	≥960 HZ	≥960 HZ	≥960 HZ
Gray Scale	16bit. Red, Green and Blue each 16K	16bit. Red, Green and Blue each 16K	16bit. Red, Green and Blue each 16K	16bit. Red, Green and Blue each 16K	16bit. Red, Green and Blue each 16K	16bit. Red, Green and Blue each 16K	16bit. Red, Green and Blue each 16K
Color Temperature	3200K-9300K adjustable	3200K-9300K adjustable	3200K-9300K adjustable	3200K-9300K adjustable	3200K-9300K adjustable	3200K-9300K adjustable	3200K-9300K adjustable
Scan Mode	1/16 scan	1/16 scan	1/16scan	1/8 scan	1/8 scan	1/4 scan	1/4 scan
Cabinet Material	die-casting aluminum	die-casting aluminum	die-casting aluminum	die-casting aluminum	die-casting aluminum	die-casting aluminum	die-casting aluminum
Cabinet Size (mm)	640x640/480x480	576x576/768x768	512x512/ 1024x768	960x960	960x768	1024x768	960x960
Cabinet Weight (kg)	28.8	28.8	28.8	28.8	28.8	28.8	28.8
Max Consumption (W/sqm)	400	460	850	850	850	850	750
Ave Consumption (W/sqm)	130	150	350	350	360	360	300
Supply Voltage	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ
Storage Temperature	-20ºC~+60ºC	-20ºC~+60ºC	-20ºC~+60ºC	-20ºC~+60ºC	-20ºC~+60ºC	-20ºC~+60ºC	-20ºC~+60ºC
Working Temperature	-20ºC ~ +50ºC	-20ºC ~ +50ºC	-20ºC ~ +50ºC	-20ºC ~ +50ºC	-20ºC ~ +50ºC	-20ºC ~ +50ºC	-20ºC ~ +50ºC
Operating Humidity	10% - 90%	10% - 90%	10% - 90%	10% - 90%	10% - 90%	10% - 90%	10% - 90%
IP Rating	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Display Capability	Text, Graph and Video	Text, Graph and Video	Text, Graph and Video	Text, Graph and Video	Text, Graph and Video	Text, Graph and Video	Text, Graph and Video
Control System	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)
Control Mode	Synchronous Control Mode	Synchronous Control Mode	Synchronous Control Mode	Synchronous Control Mode	Synchronous Control Mode	Synchronous Control Mode	Synchronous Control Mode

Features:
1. With a certain wind, rain, waterproof function. The protection grade can reach IP65.
2. High brightness, large Angle of view can work in the sun. Use which can automatically adjust the brightness of the regulating system, different time and place of the brightness of the environment changes greatly, if the screen brightness is greater than the environment too much, will cause people eyes does not adapt, especially the brightness of the day and night difference is bigger, cause light pollution, our automatic brightness adjustment system can automatic conversion is suitable for the air environment brightness, avoid the light pollution.
3. High temperature and low temperature resistance.
4. The screen with bright color, strong sense of stereo, static such as oil painting, move like the movie. LED display products use more gray levels, so that the color looks soft color, natural transition.
5. Energy saving,environment protection. The light-emitting material of LED display is energy-saving products.
6. The video display media is controlled by a microcomputer, with pictures and pictures simultaneously, playing all kinds of information in a real-time, synchronous and clear way of information transmission. It can also display two-dimensional, three-dimensional animation, video, TV, VCD programs and live.
