Copper Clad Aluminum Wire, Copper Coated Aluminum Wire, CCA Wire for LAN Cable

Product Description

Copper clad aluminum wire(CCA wire)
Diameter Specification : 0.08mm-5.0mm
Our state-of-the air cladding and welding crafts guarantee the high density and conductivity of 99.97% purity copper cladding , while our metallurgical bonding is evenly distributed around the aluminum core along the wire for excellent conductivity, mechanical properties according with US ASTM B56693 Standard . CCA wire is sorted into Hard-Drawn (H) and Annealed (A).According to the process can be divided into Cladding CCA and Plating CCA .

Standard :SJ/T 11223-2000 ASTM B 566-93

Advantage:
1.Given the same weight and diameter , Ours Wire measures2.6-3.2 times longer than copper wire ,which means 1 Ton pure copper wire should offer 2.6-3.2 Ton CCA Wire , so reduce the raw material cost much for production factory .
2. According to pure copper wire , the impossibility to separate copper from CCA wire , so it keeps thieves away .
3. CCA wire is more malleable than copper wire , unlike aluminum that would generate the insulation oxide , easier processing and good conductive properties .
4. CCA wire is light weight , easy to transport and installation and construction, to reduce labor costs .
5. CCA wire has significant social benefits , it can save a lot of copper raw resources .

Application :
CCA wire widely used in Cable TV signal and large volume communications net work signal transmission, control signal cable , welding cable and so on .
High Frequency Signal Transmission :
1. Choice conductor material for : cable TV coaxial cable
2. 50Ω Radio frequency (RF) cable
3. Flexible RF coaxial cable inner conductor material
4. Computer cable and other data cable inner conductor material
5. Superfine coaxial cable inner conductor material

Power Transmission:
1. Choice conductor material for Enameled Wire
2. Power cable conductor material
3. Control cable conductor material
4. Car and locomotives cable inner conductor
5. Construction cable conductor material
6. Bus-bar conductor material
7. Fuse
8. RF shielded cable network

Special Magnet Wire :
1. Choice conductor material for Computer
2. Mobile communications wire
3. Coil or column used in Aeronautics and Astronautics or Military Devices
CCA Wire Main Technical Parameters

Technical Characteristics	CCA Wire
	Clad type				Plated type
	10H	10A	15H	15A
Size range (mm)	0.10-8.00	0.10-8.00	0.10-8.00	0.10-8.00	0.10-6.00
Copper content (% by weight)	25-31	25-31	32-40	32-40	10
Tensile strength (Mpa)	≥152	110-172	≥152	110-172	90-120
Elongation (%) Min.	1	5	1	5	5
Conductivity (%) Min. at 20ºC	62	62	64	64	62
DC Resistivity (Ω.mm2/m) Max. at 20ºC	0.02743	0.02743	0.02676	0.02676	0.02743
Density (g/cm3) Min.	3.32	3.32	3.63	3.63	2.85

CCA Wire Main Application Area

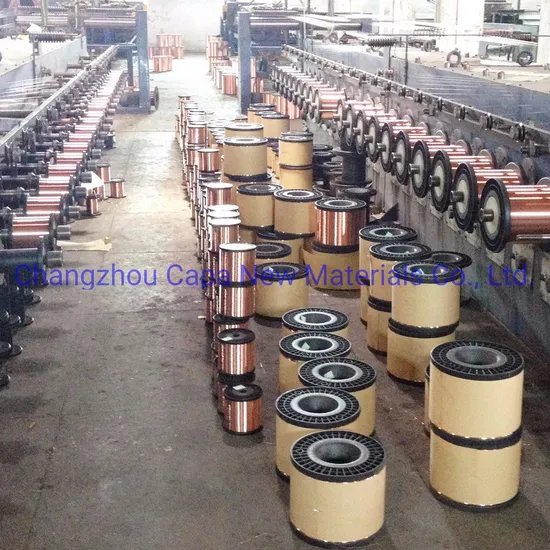

CCA Wire Productive Process (OUR FACTORY)
Quality Control
Incoming inspection(Raw material) » Process inspection &control(Semi-finished product) » Outgoing inspection (Finished product)
Test Equipment
Packing & Shipping (20GP can put in 15-23 tons)
Our Advantages:
1.Short delivery and timely delivery.
2.To be your partner,not only supplier.considerate after-sales service.
3.Professional manufacture for CCA with more than 10 years experience.
4.Full set of testing equipment to ensure products' performance.
5.Strict quality control process.
6.We are factory and our price is competitive.
7.Products can be customized according to your special requirements.
If you are interested in our products, it would be highly appreciated to contact me anytime.
CCA Wire FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO9001,14001,SGS,REACH ROHS and UL certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department with 5 inspection personnel. Quality inspection team including incoming material, process and finished product inspection.Strict Quality Control and full inspection for each reel of wire.
We have the solderability test instrument, automatic spring back angel test instrument and dielectric loss test instruments to ensure the quality in each step.
4. Q: What's the main market of your company?
A: We have customers all over the world. Abundant experience serving overseas market.
5. Q: What's your company 's product scope?
A: We have many kinds of products ,such as Copper Clad Aluminum Wire (CCA wire), Copper Clad Aluminum Magnesium (CCAM) Wire, Copper Clad Steel Wire (CCS wire), Tinned CCA wire, Tinned CCAM wire, Tinned CCS wire, enameled copper clad aluminum wire (Enameled CCA wire, ECCA Wire),Enameled copper wire, Enameled Aluminum wire (EAL wire), Silver plated wire, Composite Round (Tinned) copper wire, Copper Clad copper wire, CCA stranded wire & Parallel wire, CCS stranded Wire, CCA Busbar, power wire and cable,Coaxial cables, communication cables., etc.
6. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Changzhou City, Jiangsu Province, China.
Near Shanghai, convenient transportation. We offer transportation service.
7.Q: How long is your delivery time?
A: Generally it is 5-10 days after confirm P.O., it is according to quantity.Sample order needs around 5 days, Formal order needs around 7-10 days.
8.Q: What is your terms of payment?
A: We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated.
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
9. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
If you have other questions, please feel free to contact us.
