Mini mobile mixing plant small concrete batching mixing plant

Product Details

Product Description

Product Description
The feature of technology(Mixing plant)
1.Mixing system
A.Horizontal twin shaft mixer or PLANETARY mixer
B.Italian SICOMA MIXER or JS MIXER made by HXM company
C.Germany BHS,TEKA of mixer etc.
It is up to the budget of customer
2.Control system
A. Misubishi PLC. Self diagnosed for trouble shooting
B. Industry computer control plus printer, daily report, monthly report, yearly report
c.International electrical components:Omron, Schneider
D.Monitor system
3.Batching system
A.According to customer’s site. It has Under-ground batcher (concrete structure) and the ground batcher (steel structure)
B. It has Accumulative weighing system and individual weighing system
4.Belt system
A.Trough belt conveyor for the limited land
B.Long belt conveyor for the bigger land
5.Type of concrete mixing plant
A. Mobile batching plant can move to one place to one place
B.Modular batching plant can be easily tranfered to another place
C. Ready mixed batching plant only for the commercial concrete using

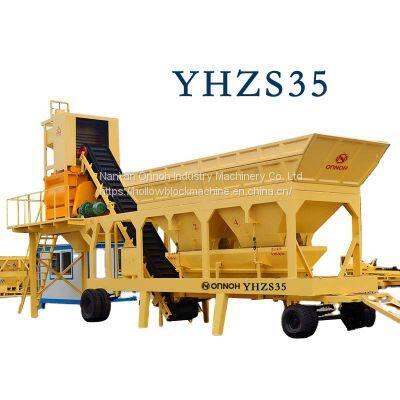

YHZS series mobile concrete mixing plant -Main technical parameters
Model	productivity	Host mixer	Weighing pricision		Total power (kw)	Total weight (kg)	Speed (km/h)	Tread diameter(mm)	Turning radius (m)
Model	m³/h	Host mixer	Aggregate	others	Total power (kw)	Total weight (kg)	Speed (km/h)	Tread diameter(mm)	Turning radius (m)
YHZS25	25	JS500	≤2%	≤1%	45	20000	15	3200	9
YHZS35	35	JS750	≤2%	≤1%	60	22000	15	3200	9
YHZS50	50	JS1000	≤2%	≤1%	70	25000	15	3400	10
YHZS75	75	JS1500	≤2%	≤1%	100	32000	15	3400	12
