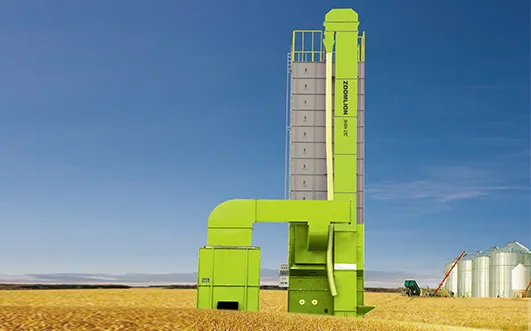

12 Ton Zoomlion Grain Dryer with High Quality

Product Description

12 ton Zoomlion Grain Dryer with High Quality
Product Description

Low-speed spiral conveying with low grain damage;
Low damage elevator for high grain drying quality;
Thin drying layer with large airflow to ensure high drying efficiency and quality;
Equipped with impurities clearance device to reduce the impurity rate;
Special wear-resisting material used on the grains flow part for long service life;
Special wear-resisting material likes stainless steel used on the collecting unit and low speed can improve wear resistance and reduce grain damage;
Automated drying monitoring system for easy operation and management;
Optional installation of imported online grain moisture tester for real-time precise moisture test;
Multi heat supply models and fuel models available for drying cost saving.

Product Parameters

Sales identification number					DC100	DC125	DC150
Model					5HXG-10C	BHXG-12.5C	5HXG-15C
Structural style					Batch-type circulation
Total weight					2840	3040	3240
Capacity(kg)	Unhusked rice(0.56T/m³)				2500~10000	2500~12500	2500~15000
	Wheat(0.68T//m³)				3035~12100	3035~15200	3035~18200
Processing amount (kg/h)( moisture reduction rate of 25% to 14.5%)					≥600	≥800	≥900
Overall size			Overall length		3577	3577	3577
			Overall width		2973	2973	2973
			Overall height		9315	10405	11495
Heating mode					Direct/Indirect
Burner			Type		Double fire control,and double throttle automatic adjustment
			Lgnition mode		High voltage autoigtion
			Fuel type		Natural gas~liquefied gas
			Fuel consumption(kg/h)		8Nm³/h
Total power(kW)					9.44
Mating power					Three-phase 380V/50HZ
Applicable fuel type					Bio-particles, rice husk, natural, gas, liquefied gas, diesel, electric power ,etc
Performances		Feeding time: rice/wheat(min)			40~50/35~45	50~60/40~50	55~65/50~60
		Discharging time: rice/wheat(min)			50~60/45~55	60~70/55~65	70~80/65~75
		Hot air temperature(ºC)			30~120
		Moisture reduction rate(%/h)			0.5~1.2
		Drying capacity(t/h*%/h)			Rice≥6/ wheat≥7
		Unit heat consumption(KJ/kg. water			≤5000
Safety devices					Air pressure switch, hot Air temperature sensor, malfunction overheat switch, hot relay, breaker protector, full-load alarm
