Gang Type Slant Bed Way CNC Lathe

Product Description

gang type slant bed way cnc lathe
This machine is applicable to automobile, motorcycle, electronics, aerospace, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and
inch threads etc,with higher efficiency and higher precision in bulk.

1. 45 degrees slant bed CNC lathe
2. Higher accuracy Taiwan linear guide
3. Chip conveying capacity is large and convenient, customer could choose
4. Chip conveying in the front or in the back
5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretching structure
6. Gang type tool post
7. high-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds.
8. Use advanced centralized lubrication system uses
9. machine with full protection design,waterproof debris reliable, easy maintenance.

Modle	unit	TCK6336(S)
Max. swing over bed	mm	Φ390
Max. swing over cross slide	mm	Φ130
Max. processing length	mm	200(400 optional )
X/Z axis travel	mm	400/300(500 optional)
Spindle unit	mm	140(170 optional)
Spindle nose		A2-5(A2-6
		optional)
Spindle bore	mm	48(56 optional)
Spindle drawing pipe diameter	mm	40(45 optional)
Spindle speed	rpm	4000/3500
Chuck size	inch	6/8
Spindle motor	kw	3.7/5.5
X/Z feed motor power	kw	1.5
X/Z feed motor torque	N.m	6/6
X/Z position accuracy	mm	0.016/0.016
X/Z repeatability	mm	0.006/0.006
X/Z rapid feed speed	m/min	18/15(18/18 optional)
Cutting tool shape size	mm	20*20
Total power capacity	kva	9/11
Guide type		Taiwan linear guide way
Machine dimension (L*W*H)	mm	2200(2500 optional)×1340×1710
N.W.	kgs	2200(2500 optional)

STANDARD ACCESSORIES:

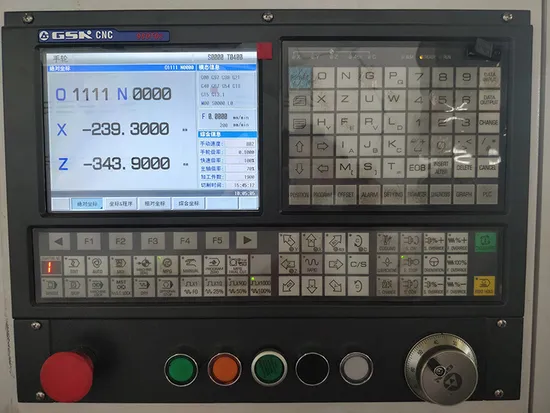

1.GSK980TDC or Siemens 808D NC system
2.servo motor 3.7 kw
3.4 station gang type tool post
4.6" domestic thru-hole type hydraulic chuck


OPTIONAL ACCESSORIES:
1.NC System: KND1000Ti, Fanuc Oi Mate-T
2.Main Motor: Servo5.5/7.5KW
3.Inverter 7.5KW
4.Turret: 4 station electric turret , 6 station electric turret
5. Chuck: 6″Non-through hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
6.Chip conveyor
7.Steady Rest
8.Other optional item: Driving tool turret, automatic feeding device and manipulator.

---
