6 Colors Sticker Label Flexo Printing Machine

Product Description

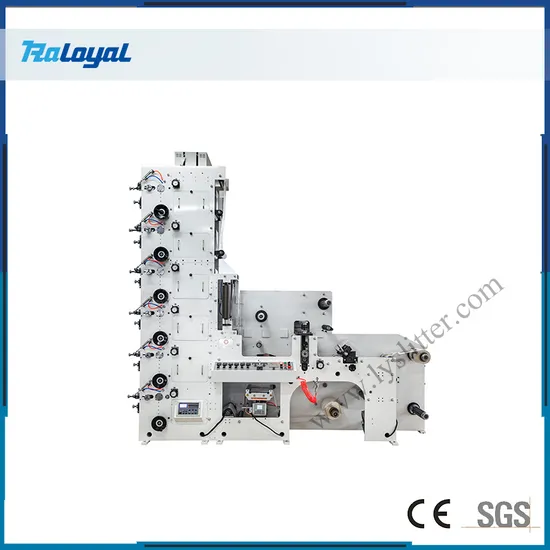

6 Colors Label Flexo Printing Machine
Technical parameter

Model	RY6-320	RY6-450	RY6-560	RY6-850
Printing speed	100m/min	100m/min	100m/min	100m/min
Printing color	6	6	6	6
Paper max width	320mm	450mm	560mm	560mm
Max printing width	310mm	440mm	550mm	550mm
Max unwinding diameter	600mm	600mm	600mm	600mm
Max rewinding diameter	550mm	550mm	550mm	550mm
Printing perimeter	175-320mm	175-320mm	175-320mm	175-320mm
Precision	±0.1mm	±0.1mm	±0.1mm	±0.1mm

Use It is suitable for printing paper, paper board, high-grade self-adhesive label and so on.
Characteristic
The product has the characteristics of wide printing range, no pollution of ink, high economic benefit and fast printing speed.
1. Main motor adopts imported electric frequency speed regulation.
2. Automatic tension control is used for unwinding.
3. Ultrasonic rectification is used for web guide.
4. Part of the printing, using ceramic anilox rollers, has the characteristics of long service life, wear resistance, corrosion resistance
5. Printing unit adopts 360 degree weekly alignment adjustment. The printing units can be individually joined or loosened so that other printing units continue to print.
6. Each printing unit is equipped with infrared drying device.
7. Machine with two sets of die cutting function.
8. Automatic metering.
9. Parking roller can be automatically disengaged, and low speed dynamic convey to prevent dry ink.
10. Rolls for paper, printing, automatic infrared drying, die cutting and rewinding finished once.

Main configuration

Standard configurations		Option
6×ceramic anilox roller	Web guide	UV dryer
6×ink roller	AC contactor	strobe lamp(quality monitoring)
6×Infrared dryer	Variable frequency	computer monitor(quality monitoring)
12×printing roller	Main motor	lamination station
2×shaft	Control panel	turn bar(double-side printing)
1×Unwinding tension controller	Hall switch	dividing cutting device
1×Rewinding tension controller	Push button	slitting
Magnetic powder brake	Temperature control	die cutting unit
Magnetic powder clutch	Breaker	corona treatment
2×die cutting station

More details of 6 colors label flexo printing machine
Customer feedback
Wide range of application
Why us ------R&D
Loyal engineers focus on the innovation of the paper straw forming continuously.
We combine powerful construction and aesthetic characteristic, while maintaining the highest standard of quality.
------Q&A
In order to supply products of high consistently high quality and reliability, Loyal staff strengthen Quality Assurance protocols and procedures as important part of overall quality, safety management.
------Detail
Care about every details to improve our dear customers operation efficiency and convenience.
------After-sale service
Loyal team will respond clients inquiry or questions within 24 hours.
Contact us without hesitate! We are willing to send you in greater detail!

---
