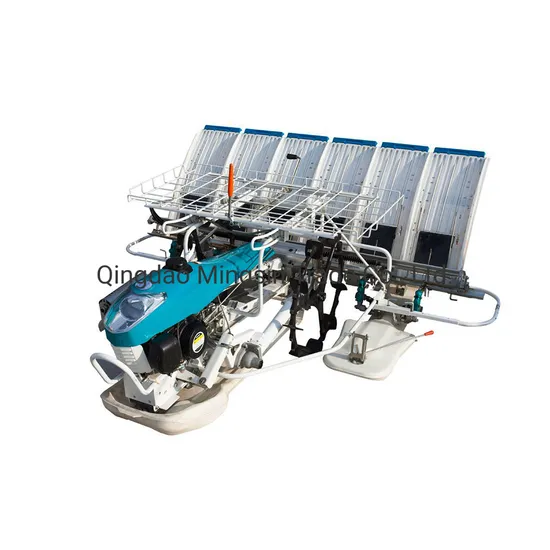

Paddy Rice Transplanter (2ZS-4) , Walking Type Rice Transplanter

Product Description

Product Description
Product
The machine has the characteristics of automatic balance of the machine body. The torsion bar can realize the automatic balance system to restore to the center. Even if it is working in uneven fields, it can achieve the consistent insertion depth; at the same time, it also has the main transmission, plug and hydraulic pressure. The lighting and other control systems are integrated in the control panel, located in front of the operator, which is easier to operate.
The machine has been designed as simple structure and reasonable price. It apply to deep mud field and bad condition field. And also widely applicable to rice planting of small field, especially for hilly areas. The line distance is 300mm, row distance have 5-grades adjustable including 210-180-160-140-120mm by a simple and quick operation.
Product Parameters

Name	4 rows gasoline engine walking type rice transplanter
Model	2ZS-4 Series
Structure type	Two wheels + Three Floating plates type (gasoline engine)
Engine Brand	1062 four-stroke gasoline engine
Power	2.68kw / 3600r/min
Variable Speed	Forwards two gears , Backwards one gear
Fuel: Gasoline	#93, #97
Size	2410×1480×900mm
Weight	176kg
Number of Planting Rows	4
Space between rows	300mm
Transverse taking seedling quantity	15.6/18 14/20 10.8/26
Longitudinal taking seedlings quantity	3-5 (adjustable)
Hill Space:	126 ,140,157, 194, 216,240 mm
Planting depth	10-35mm
working wheel structure type/diameter	rubber tire needle driving wheel / 660mm

Name	6 Rows Walking Behind Type Rice Transplanter
Model	2ZS-6 Series
Structure type	Two wheels + Three Floating plates type (gasoline engine )
Engine Brand	YAMAHA MZ175 type four-stroke gasoline
engine Power	3.3kw
Rotate Speed	3600r/min
Variable Speed	Forwards two gears , Backwards one gear
Fuel	Gasoline #93, #97
Size	2370x2280x930mm (work), 2370 x1930x930(transport)
Weight	195kg
Number of Planting Rows	6
Space between rows	300mm

Detailed Photos
Company
Services
Department Introduction of QC / Technical Support:
In order to get super quality, we have special QC department to control the product quality. This department is composed by experienced engineers who can offer us strong technical support easily. The engineers will inspect product quality both in order production and after order production to make sure each shipment we send to our customers is in the best status. With their strict quality control, our consistent quality wins us more and more orders from our international customers.
QC Flow:
1. Material inspection before production to avoid any potential problem from the very beginning;
2. Inspection for half-finished products during order production to find the problem earlier if any;
3. Inspection for finished products after production to make sure the products comply with customer's requirement.
Full Service and Product Warranty:
We offer our customers technical assistance and a full one year warranty on all products covering all manufacturing defects. ME Our manufacturing facilty is completely computerized to provide our customers efficiency, reliability, high quality and timely shipments. Spare Parts:We can supply spare parts within 15 business days or sooner. Currently, part numbers are not available on-line. You may however determine the part number from your Parts Book or, if it is a simple part, you may describe the part and send us an order online. If you are not sure,
please Contact Us . Shipment: We can ship from our port in Qingdao or Shanghai, China to anywhere in the world within short days.
FAQ
Q1: Are you a factory or trading company?
We have our factory for the farm machines and we also have our own trading company with self-supported import and export right.
Q2: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc.
Q3: Where is your factory located? How can I visit there?
Our factory is located in Linyi City, Shandong Province, China. About 1 hour away from Linyi Airport, 4 hours away from Qingdao airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website?
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest.
Q5: How can I make the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
30% as prepayment and the balance when the goods are ready for shipping.
Q6: What's the Payment terms?
T/T, L/C or some other ways payment method.
Q7: At which port do you usually ship the good?
We usually ship goods via Qingdao port of China.
Q8. How about the Warranty ?
12 months warranty from the time of the goods arrive at destination.
