Double Wire Binding Machine for Wall Calendar Notebook Exercise Book Brochure

Product Description

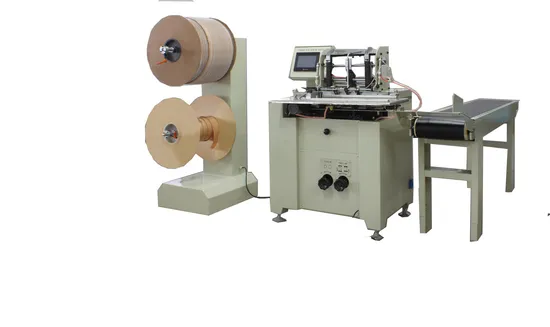

Double Wire Binding Machine DCA-520
The machine is used for binding double wire books, notebooks, calendars, etc. With the integration of automatic cutting, loops-counting, skip binding, and closing, it increases the production efficiency and lowered the cost remarkably. It's easy to change mold and optional hanger attachment.
Technical data:
Work Speed: up to 1000 Volume/hour(Effective speed depends on operator's ability)
Binding Capacity: 1/4" - 3/4"
Max. Binding Length: 520mm
Air Pressure: 5-8Bar
Workbench Dimension: 680×310mm
Power: 1PH 220V 50/60HZ (other voltage on request)
Machine Dimensions (L×W×H):
Main machine dimensions: 0.8×0.75×1.15m
Feeding reel dimensions: 0.6×0.5×1.35m
Weight: 350Kg
Specification:

Size	Pitch	Hole(mm)	Wire dia(mm)	Thickness (mm)	Pages
1/4	3:1	4.0*4.0	6.4	4.9	45
5/16	3:1	4.0*4.0	7.9	6.3	60
3/8	3:1	4.0*4.0	9.5	7.9	70
7/16	3:1	4.5*4.5	11.1	9.3	85
1/2	3:1	4.5*4.5	12.7	10.9	100
9/16	3:1	4.5*4.5	14.3	12.2	120
5/8	2:1	5.0*5.0	15.9	13.4	130
3/4	2:1	5.0*5.0	19.1	16.6	160

Technical data:

Speed	1500volume/hour
Air Pressure	5-8Kgf
Wire Diameter	1/4"-3/4
Workbench Dimension	680x310mm
The max width of binding	520mm
Power	1PH 220V 50/80Hz (other voltage on request)
Main machine	780x730x1150mm
Feeding reel	600x500x1320mm
Net weight	300Kg

Loading:
Exhibition:
Common questions and answers:
1. Are your a factory or trading company?
We are a professional double wire products machines maker since 2008 and we are the audited supplier in MIC supervised by BV.
2. What about the warranty time?
12 months when you receive the machine. When you get the machine we could send the engineer to supply training service for the first time but the traffic fees and the accommodation arrangement should be on your side. Automatic inline machine training need for 3-4 days and semi-auto machine for 1-2 days.
3. How many molds attached to one machine?
One machine attaches one mold and if you need more sizes, you could make the order.
4.How about spare parts?
Most of the electrical parts and bearings we used are international brands such as SIEMENS. You could buy them in your local market. For the molds, we have stocks of normal double wire binding size molds. The special mold sizes need 10-15 days.
5. Do you have a dealer in my country?
For the hot selling countries, we have the dealers could supply training service for you and detail your could contact with us.

---
