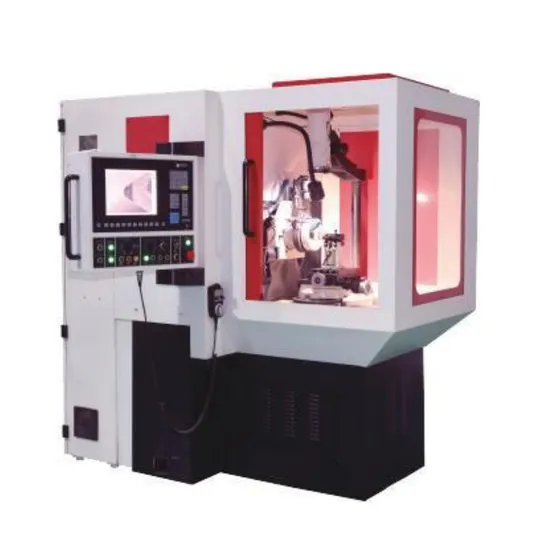

4-Axis CNC Tool Grinder Grinding Machine for PCD Inserts

Product Description

Product Description
BT-150D is made of grinding wheel oscillation axis(X-axis), grinding wheel tilt angle axis (B-axis), rotation axis in the horizontal plane(C-axis), working piece feeding axis(Y-axis). working piece feeding axis(Y-axis) is equipped with raster rule, and the closed loop position feedback is used to ensure the precision of micron level grinding.
The tool grinder is reliable in performance and it is suitable for massive production of carbide inserts, PCD and CBN inserts. Once centering is finished, grinding will be done automatically, realizing constant pressure grinding and flexible feed. The even consumption of grinding wheel can be measured and compensated by the system, so production with long cycle time can be achieved. Scope of use of BT-150D

Product Parameters

1	Diameter of Grinding wheel	150mm
2	Grinding wheel center hole	40mm
3	Power of grinding spindle	5KW
4	Adjustable range of grinding speed(RPM)	5000~8000RPM
5	Servo motor swing frequency	0~50times/min
6	Grinding wheel movement range(X )	350mm
7	Changeable Clearance Angle	-5°~25°
8	Table movement range in feed direction(Y)	130mm
9	Work-piece rotation range in axial direction	360°
10	Linear scale resolution	0.001mm
11	Encoder resolution	1'
12	Max Magnification of Optical Microscope	0.7~4 times
13	Magnification of CCD Measuring System	80times
14	Coolant Tank with Filter Paper	About 70 L
15	Overall Dimensions L*W*H	1890*1650*1980mm
16	Weight With Coolant Tank	2400KG
17	Electrical Supply	12Kw
18	Voltage Requested	380V/Three phase /50Hz

Detailed Photos

Packaging & Shipping

After Sales Service
1. The warranty period of the whole machine is one year for life.
2. During the warranty period, all kinds of failures are repaired and free of charge in time, and all kinds of non-man-made damage to parts will be replaced free of charge in time.
3. Outside the warranty period, the supplier provides lifelong paid maintenance services. If the parts are replaced, the supplier supplies the demand side at a cost price.
Company Profile
Demina mainly engages in mass production of CNC tool grinding machine and provides tool regrinding service. We have been in the field over 20 years. It is a national high-tech enterprise and a SRDI enterprise in Beijing.
Our company's independently developed BT-150 series PCD tool grinding machine closely combines traditional tool grinding technology with software technology. On the basis of ensuring the accuracy of tool grinding, we have achieved CNC tool grinding technology, greatly improving the work efficiency of tool enterprises and effectively reducing their operating costs. According to the different technical requirements of our customers, our BT-150 series PCD tool grinding machine have three types: manual action, manual and automatic integration, and CNC operation. Among them, the CNC tool grinder with specially developed software is in a leading position in the industry in China. In addition to providing high-quality products, we also provide customers with comprehensive and high-quality after-sales technical support.

---
