Product Description
Product Description

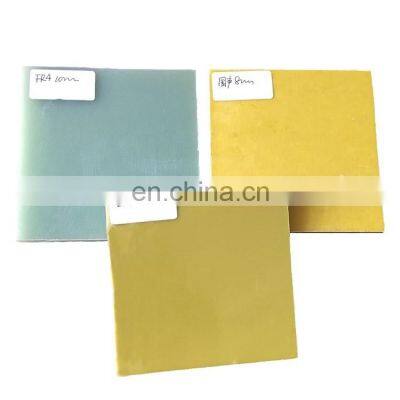

Product DescriptionElectronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceFR4 (or FR-4) is a NEMA grade designation for glass-reinforced epoxy laminate material. FR4 is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing)."FR" stands for flame retardant, and denotes that the material complies with the standard UL94V-0. FR4 glass epoxy is a popular and versatile high-pressure thermoset plastic laminate grade with good strength to weight ratios. With near zero water absorption, FR4 is most commonly used as an electrical insulator possessing considerable mechanical strength. The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.Electronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceDetails ImagesG10/ FR4 glass epoxy sheetStandard color: Green, Black, YellowStandard size: 1020*1220mm, 1220*2440mmStandard Thickness: 0.2-50mmElectronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceCNC Machining ServiceFR4/ G10 Insulation parts$0.8-$3.6/ pcsFR4/ G10 -Ring & Washer$1.5-$6.5/pcsFR4/ G10 -Tooth Gear$3.5-$8.5Tehnical Data of G10/ FR4 Epoxy Fiberglass SheetPROPERTIESUNITMETHODESTANDARD VALUETESTING RESULTFlexural strength perpendicular to laminations – under normal room temperatureMPaISO 178≥ 350360Notch Impact strength parallel to lamination (Notched charpy)kJ/m2ISO 179≥ 3745Dielectric strength perpendicular to laminations (in oil 90±2℃), 1.0mm in thicknesskV/mmIEC 60243≥ 14.220.5Breakdown voltage parallel to laminations (in oil 90±2℃)kVIEC 60243≥ 3.5401MHz dielectric coefficient1MHz-IEC 60250≤ 5.54.91MHz loss factor1MHz-IEC 60250≤ 0.040.013Water absorption rate, 1.6mm in thickness%ISO 62≤ 0.250.02Insulation resistance Impregnated in water(22℃, 50%RH)ΩIEC 60093≥5.0×10105.6×1010FlammabilityclassIEC 60093FV0FV0Densityg/cm3-1.9-2.22.1Company ProfileShenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, after more than decades of continuous efforts , has developed into a professional integrated manufacturer of specializes in production and development Engineering Plastic and Insulation Plastic ,is the most complete varieties. We have automatic dipping production lines, CNC carving machine and laser engraving machine, along with several saws, milling, planing,grinding, drilling, tapping, punching, cutting and other machining large production equipment.Our well-equipment facilites and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.To all dear friends who are viewing this page: With over 10 years' experience on G10 FR4 3240 Epoxy Fiberglass Sheet, here we, XYH PLASTIC Co., Ltd, can surely assist you more on your business, no matter you focus on machinerys and electronic equipments, or your retailing and wholesale plans. As it's our duty and honor to help you to do better in Electronic insulating industry. Pls see product information below and feel free to contact me for further discussion>>>>>>Attn: Ms. Belinda WuMobile / Whatsapp: +86 15622961549 WeChat: linxi5070 Email: sales06(at)Electronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceCertificationsElectronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceProduct packagingRecommend ProductsFR4/G10 epoxy fiberglass sheetColor: Green, blackStandard size: 1020*1220mmThickness: 0.2-50mm3240 epoxy fiberglass sheetColor: YellowStandard size: 1020*2020mmThickness: 0.3-50mmBakelite plenolic sheetColor: Orange, blackStandard size: 1020*2020mmThickness: 0.3-100mm3025 phenolic Cotton laminated sheetColor: BrownStandard size: 1020*2020mmThickness: 1-150mm3021 phenolic Paper laminated sheetColor: BrownStandard size: 1020*2020mmThickness: 2-100mmCDM stone board/ Ricocel sheetColor: Black, grey blueStandard size: 1020*1220mm/ 1220*2440mmThickness: 3-50mm
>>
