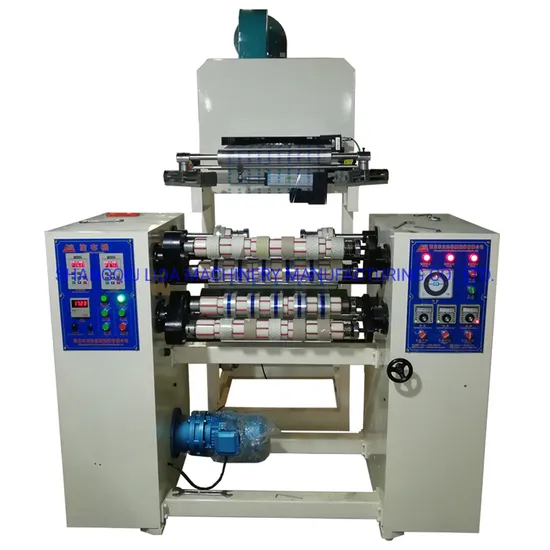

Low Investment BOPP Adhesive Packing Tape Coating Printing Slitting Machine

Product Description

Application: Suitable for BOPP film printing, coating, cutting and rewinding to produce clear tape, printed tape, color tape or stationery tape. Low investment BOPP adhesive packing tape coating printing slitting machine
Raw material: BOPP film, adhesive glue, paper core
Low investment BOPP adhesive packing tape coating printing slitting machine
Production process of BOPP packing tape:
Low investment BOPP adhesive packing tape coating printing slitting machine
Feature of this adhesive BOPP tape making machine:
1. Coating method: comma blade coater
2. There are electric heating at both end of the oven, thermostat control temperature, using water as the heating medium
3. Frequency control, double frequency three motor control system, coating speed is adjustable.
4. Feeding part use magnetic powder brake to keep uniform and smooth tension, the air shaft is optional.
5. Four shafts reciprocating rewinding part. (four rewinding shafts)
6. New EPC system at end of the oven.
7. This BOPP tape machine has printing part, so it is the first choice to produce printed BOPP tape.
Low investment BOPP adhesive packing tape coating printing slitting machine
Technical parameter of this LD-500C BOPP packaging tape making machine:

Coating width	500mm
Oven length	6M
Voltage	380V 50HZ
Drying method	Electric, gas, oil, steam, stove
Max. Unwinding diameter	600mm
Max. rewinding diameter	300mm
Coating speed	0-30m/min
Motor power	1.1KW*3
Gross capacity	15KW

Low investment BOPP adhesive packing tape coating printing slitting machine
Production of Lida BOPP self adhesive packing tape printing coating machine:
Low investment BOPP adhesive packing tape coating printing slitting machine
Shipment of Lida BOPP self adhesive packing tape printing coating machine:
Installation and commissioning of Lida BOPP self adhesive packing tape printing coating machine:
Low investment BOPP adhesive packing tape coating printing slitting machine
LIDA machinery company:Low investment BOPP adhesive packing tape coating printing slitting machine
Shangqiu Lida Machinery Manufacturing Co., ltd is a comprehensive enterprise integrated with design, R&D, manufacturing and sales, focusing on adhesive tape coating machine and slitting machine for 20years, especially the 500 and 1000 small coating machine match the small or medium printing tape production for self-employment, family business and tape roll processing factory, to save production time and provide best service to customers.
Main products: BOPP tape coating machine, PE film coating machine, Tape slitting machine, Rewinding machine, Auto roll cutting machine, Rewinding and cutting machine, Printing press, etc.
Low investment BOPP adhesive packing tape coating printing slitting machine
FAQ:Low investment BOPP adhesive packing tape coating printing slitting machine 1. What is the ratio of raw material to produce BOPP packaging tape?
Normally, 1ton BOPP film+1.7ton glue+Paper core and we can get about 2ton BOPP tape after drying.
2. What is the BOPP film and the coating thickness?
We suggest the 22micron BOPP film and 28micron glue.
3. What is the requirement of the glue?
Sloid content 54%±1, pressure sensitive acrylic adhesive
4. What is the production cost of the packaging tape in China?
About USD 0.085 per square meter
5. What is the consumption of the BOPP tape machine, such as electricity, water and others?
The 500mm tape machine consume about 10kg water each day, but the power consumption is not fixed.
6. The adhesive BOPP tape machine is manual or automatic?
The tape machine need a air compressor, so it is automatic pneumatic control.
7. What is the coating method?
Comma blade coater
8. In hot climate country, such as Morocco, Algeria or UAE, which type is better, water based adhesive tape or hotmelt adhesive tape?
Water based adhesive tape is better, owing to the cost and easy operation.
9. What is the coating speed of the packaging tape machine, is is possible faster?
Normally, it is 0-30m/minute, very cost effective. Faster is no problem, such as 40m or 50m/minute, but the cost will be higher and it will need more operators.
10. What about the logo printing, Gravure printing or Flexo printing?
1-2 colors gravure printing

---
