Single Needle Servo Motor Quilting Machine

Product Description

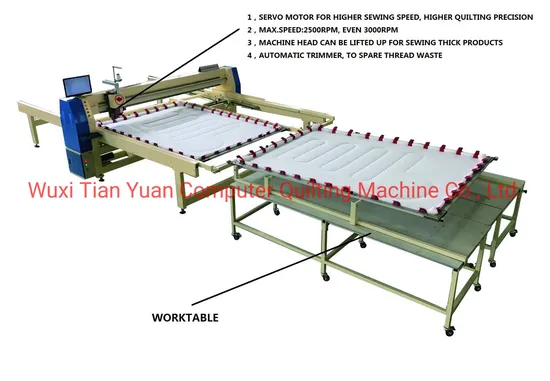

HFJ-26A-2 Single Needle Computerized quilting machine
Usages:
Suitable for quilting patterns on duvet, mattress pad, bedcover, garments, etc. Can also quilt on sponge and leather.
Specifications:
1) 19"LCD with Chinese and English version. With 538 patterns already in the computer; Lockstitch, high precision(new designs supported)
2) Power supply: 220V, 50Hz, 2kw
3) Automatically stops if thread breaks
4) Automatically stop against malfunction of computer, motor, and display
5) Pattern form: . DST DAT
6) USB interface
7) Single stitch length: 2-7mm
8) Needle type: DP5 18~22#
9) Max. Speed: 2200rpm
10) Max. Thickness: 1500 gsm
Specification B: HFJ-26A-2
Max quilt size: 2400 (W) × 2600 (L) mm
Max needle drop size: 2200 (W) × 2400 (L) mm
M/C dimension: 5000 (L) × 3420 (W) × 1780 (H) mm
Packing size: 3590 (L) × 940(W) × 1770 (H) mm
N. W.: 1300kg; G. W.: 1440kg
Specification C: HFJ-28A-2
Max quilt size: 2600 (W) × 2800 (L) mm
Max needle drop size: 2400 (W) × 2600 (L) mm
M/C dimension: 5200 (L) × 3700 (W) × 1780 (H) mm
Packing size: 3890 (L) × 940(W) × 1770 (H) mm
N. W.: 1440kg; G. W.: 1580kg
Specification D: HFJ-30A-2
Max quilt size: 2800 (W) × 3200 (L) mm
Max needle drop size: 2600 (W) × 3000 (L) mm
M/C dimension: 5600 (L) × 3900 (W) × 1780 (H) mm
Packing size: 4090 (L) × 940(W) × 1770 (H) mm
N. W.: 1520kg; G. W.: 1660kg
Specification E: HFJ-32A-2
Max quilt size: 3000 (W) × 3200 (L) mm
Max needle drop size: 2800 (W) × 3000 (L) mm
M/C dimension: 5600 (L) × 4100 (W) × 1780 (H) mm
Packing size: 4290 (L) × 760(W) × 1770 (H) mm
N. W.: 1600kg; G. W.: 1750kg
Specification F: HFJ-35F-2
Max quilt size: 3200 (W) × 3500 (L) mm
Max needle drop size: 3000 (W) × 3300 (L) mm
M/C dimension: 5900 (L) × 4220 (W) × 1780 (H) mm
Packing size: 4390 (L) × 940(W) × 1770 (H) mm
N. W.: 1700kg; G. W.: 1820kg
Wuxi Tian Yuan Computer Quilting Machine Co., Ltd., with a total area of 33, 000 square meters, is a professional manufacturer of quilting machines, pillow filling machines, ball fiber machine etc, and nonwoven machines.
Our currently available quilting machines, pillow filling machines, compress packing machine, ball fiber machine, nonwoven machines include needle-punched production line, geotextile line, asphalt mixing plant, stiff wadding line, glue-free wadding line, spray-bonded wadding line, quilt wadding line. We also provide technique supports and after-sale services.
Being a company with 20 years of experience in design and manufacturing, we have done a good job in researching and developing equipment and products. With advanced technology, we promise to customers that all machines delivered are qualified ones that have already been tested. Our over ten production lines can display the running condition of the machines and the most advanced technology.
We have a professional technical team that provides such supports as techniques, technology and equipment. In addition, we have a well-trained and experienced team providing good after-sale services. We also provide with installation, testing and training services according to customersrequirements.
Insisting on the principle of "Every customer is important to our brand and image", we are enjoying good reputations both at home and abroad. Our products have been sold to many countries and regions such as Japan, the Middle East, South and North America, and the Occident. Our brand of "TIAN YUAN" has become a famous trademark in textile machinery like nonwoven industry field.
We warmly welcome you to contact us for more relative information about our quilting machines and nonwoven machines. We are sincerely looking forward to cooperating with all customers.
Welcome to visit our factory!

---
