| RF coaxial connector | |

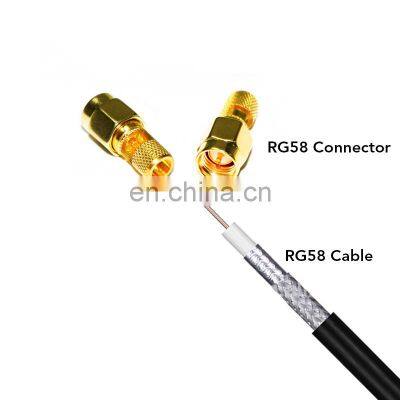

| Product Code:SMA-J-6.0 Male Connector | Product Name:SMA Connector |
| Part Number:C7 | Environment protect information: satisfy RoHS demand |
| Electrical performance | ||
| Characteristic impedance: | 50Ω | |
| Rated current: | 0~18GHz | |
| Contact resistance: | inner conductor≤3mΩ outside conductor≤2mΩ | |
| Dielectrically withstanding voltage: | 1000VRMS | |
| Voltage rating: | 335 VRMS | |
| Insulation Resistance: | ≥ 5000MΩ | |
| Mechanical performance | ||
| Inner conductor separating force: | ≥0.28N | |
| Durability: | 500 times | |
| Material and surface treatment: | metal material, workmanship and surface treatment | |
| Contact | ||
| Material of male: | copper alloy | |
| Surface treatment: | full copper and gold-plated | |
| Workmanship: | machining operation | |
| Material: | copper alloy | |
| Surface Treatment: | full copper and gold-plated | |
| Workmanship: | machining operation Plastic, workmanship and forming | |
| Insulator | ||
| Material: | polytetrafluoroethylene | |
| Workmanship: | machining operation | |
| Operation environment | ||
| Temperature Range: | -55℃~+155℃ | |
| Shock: | 500 m/s2 | |
| Vibration: | 10~2000Hz,10m/s2 | |
| Structure and Dimension | ||
| Maximum dimension of plug: | Customized | |
| Brief Introduction | ||
| Package and Store: | 100PCS/package | |
| We are a large company manufacture RF coaxial connectors. SMA(C7)is one kind of microminiature RF coaxial connectors with snap-on coupling self-lock mechanism,Characteristic impedance is 50Ω.They are widely used in connection with RF coaxial cable or the transmission of RF signal in the mobile communication system, GSM,GPRS,CDMA,LTE,GPS,GNSS,GLONASS,BEIDOU corresponding to the network,IT field and LANS etc. The characteristic of connector is in small volume, light weight and convenient connection. | ||
