Basic Info.
Model NO.
1440x2050 x2100
Automatic Grade
Automatic
Proximity Exposure
Vacuum Contact
Exposing Area(mm)
1000*800/1150*950/1350*1100**mm2
Vacuum System
High Speed Dual-Loop Vacuum-Exhausting System
Exposure
Major Exposure and Second Exposure
Power Supply
220V/380V50hzv
Transport Package
Carton and Pallet
Specification
2300*1400*1300mm
Production Capacity
50000/1 Year
Product Description
Specifications 1) Solid and environment-friendly full-cover metal machine frame
2) Three drawers for stores and standby plates
Function

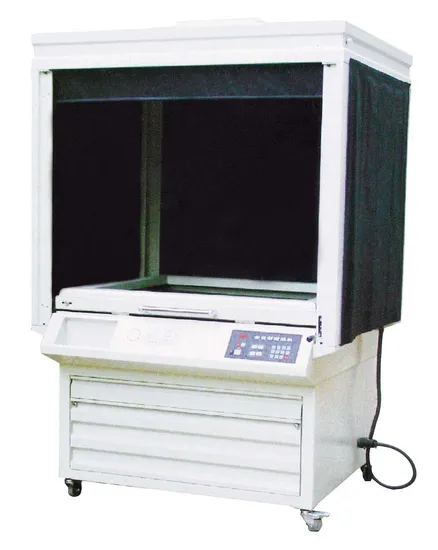

A contact exposure frame, or printing down frame, or plate exposure is contact imaging device used for making the printing plates. The pressure, both atmospheric pressure and mechanical pressure, makes the film and the plate contacting tightly so as to let the photochemical reaction transfer the original image on the film precisely onto the printing plates.
Product features
1. Solid and environment-friendly full-cover metal machine frame prevents UV light from leaking out.
2. Micro computer control (manual or automatical) 99 sets of data can be selected. Multidigit LED displaying.
3. Three drawers for stores and standby plates.
4. UV light integrator assures comprehensive scanning.
5. Multiple exhausting system and multistep exposure system selects multi-exposure according to different materials and eliminates tape track.
6. Pre-vacuum-exhausting, enhanced vacuum exhausting, exposure and enhanced exposure.
7. Anti-electrostatic rubber pads and air-intake all around assures comprehensive exhausting with high efficiency and speed.
8. Yellow safe work light.
9. Long-time-lasting constant metal-halide lamp, 5KW.(25%,50%,100% light intensity for option)
10. Strong cooling air fan assures the normal operation life of glass and lamp.
11. Highquality lamp initiates exposure with parallel light spectrum and assures the quality of printing down by Superluck full cover printing down frame.
|
Technical spectification
| Model | EXPOMAC offset plate exposure |
| CSHF122E | CSHF135E | CSHF145E | CSHF180E |
| Exposing Area(mm) | 960×1200 | 1060×1350 | 1200x1450 | 1500×1800 |
| Light Source | 3KW violet lamp (5KW violet lamp is optional) |
| Vacuum System | high speed dual-loop vacuum-exhausting system |
| Vacuum Degree | 760mmHg (30inHg) |
| Exposure Uniformity | 97% |
| Vacuum Exhausting | preliminary vacuum exhausting and major vacuum exhausting |
| Exposure | major exposure and second exposure |
| Power Supply | 220V/380V 50/60HZ 32A single phase/3PH |
| Net Weight (kg) | 270 | 320 | 360 | 385 |
| Gross Weight(kg) | 345 | 430 | 450 | 480 |
| Reflection Glass(mm) | 1348x1093x5 | 1597x1343x8 | 1450x1690x8 | 1990x1557x8 |
| Rubber Pad(mm) | 1348x1093x3 | 1597x1343x3 | 1450x1690x3 | 1990x1557x3 |
| Pressure Shaft Bearing Limit(kg) | 90 | 110 | 115 | 120 |
| Machine Size(mm) | 1570x1230 x2280 | 1820x1480 x2360 | 1440x2050 x2100 | 2210x1700 x2480 |
| Packing Size(mm) | 1650x1450 x1200 | 1900x1600 x1200 | 1520x2350 x2400 | 2290x1820 x1200 |
Contact information Vivien
ChangShu Evergrande Imp&Exp Co.,Ltd.
No.2 DianHu Road,ChangShu,JiangSu, 215500, China,
Mob:0086 15150359653
FAX:+86-512 527 068 33
>>
