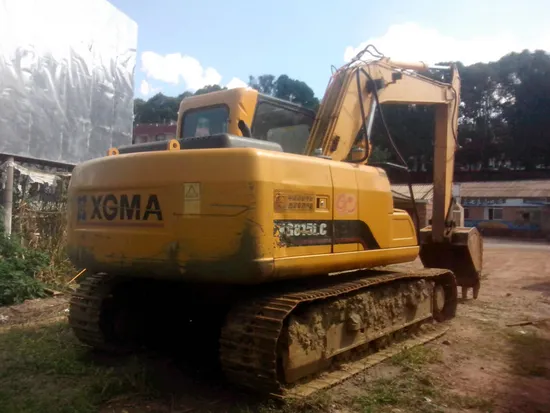

Xgma 15 Ton Track Crawler Excavator Xg815FL with Factory Price

Product Description

XGMA 15 Ton Track Crawler Excavator XG815FL With Factory Price
Product Description

Increased availability and Minimized service intervals:* High-strength steel in the boom, stick and bucket increases life by 30%* Highly durable materials for the increased bucket and ground engaging tool life* Improved swing motor strength more than doubles component lifespan* High-quality electrical components throughoutOperator Comfort and Safety* Sleek ergonomic design* Top-quality instrumentation* Sound attenuated cab* Automatic climate control* Contoured high-quality suspension seat promoting operator comfort
Product Parameters

Description		Unit	XG815FL	XG825FL	XG836FL
Basic Parameters	Bucket capacity	m3	0.61	1.2	1.6
	Operating weight	t	13.9	25.5	35
	Max. drawbar pull	Nm/rpm	337.6/1600	-	1800/1500
Engine	Model		BB-4BG1TRP	GB3-4HK1X	6HK1
	Piston displacement	L	4.329	5.193	7.79
	Rated power	kW	84	133	212
	Rated speed	r/min	2200	2000	2000
System Operating Pressure	Implement circuits	Mpa	31.4	31.4	34.3
	Power boost	Mpa	34.3	34.3	34.3
	Swing circuits	Mpa	25	24.5	26
	Travel circuits	Mpa	34.3	31.3	34.3
	Max.rated flow of main pumps	L/min	2*120	2*200	2*280
Working Range Parameters	Boom	mm	4600	6000	6470
	Arm	mm	2500	2960	2800
	Max. digging radius	mm	8290	10290	10700
	Max. digging depth	mm	5530	6940	6980
	Max. vertical digging depth	mm	4940	6100	5860
	Max. digging height	mm	8480	9680	9840
	Max. dumping height	mm	6060	6785	6810
Performance Parameters	Max. excavating force(arm/bucket)	KN	69/95	135/170	196/231
	Swing speed	r/min	11.9	10.5	-
	Travel speed(high/low)	km/h	5.0/3.2	5.3/3.5	5.0/3.0
	Grading capacity	°/%	35°/70%	35°/70%	35°/70%
	Max. traction	KN	102	205	267
	Average ground pressure	Kpa	40	50	62.8
	Noises at driver location	dB(A)	80	77	77
	Overall dimensions(L×W×H)	mm	7750*2490*2810	10140*3190*3100	11320*3340*3580
