PVC Soft Fiber Reinforced Garden Water Hose Machine for Irrigation Production Line/Extrusion Machine/Extruder

Product Description

Product Description
PVC Soft Fiber Reinforced Garden Water Hose Machine for Irrigation Production Line/Extrusion Machine/Extruder
PVC fiber reinforced hose extrusion machine Which mainly used to produce PVC fiber reinforced hose, also named as PVC net hose, snake hose. The finished product is soft,non-toxic, transparent, pressure resistance, tensile resistance and corrosion resistance; it is suitable for pressure corrosive gas, liquid transportation, lawn/garden watering, widely used in chemical, agricultural and construction industries.which can also produce HDPE silicon core pipe, PP-R, PE and PEX pipes.
This line consists of main extruders, water cooling tank, haul off machine, fiber braiding machine, coiler etc,.
which has reasonable design, unique structure, stable performance, easy operation and maintenance, constant production capacity, warmly welcomed by customers. Features: SJSZ series conical twin screw extruder Mould for precise pipe shaping Vacuum cooling tank for rapid cooling Spray cooling tank for larger pipes Haul-off machine for continuous production Cutting machine for accurate pipe length Stacker for organized storage Optional Auxiliary Machinery: Hot & cooling mixer Crusher for recycling Milling machine for further processing Belling machine for pipe end shaping

Specification

Model	Pipe Diameter(mm)	Extruder Model	Total Power(Kw)	Out capacity(Kg/H)
PYTG-45	6-50	SJ-45/28	35	60-80
PYTG-65	16-110	SJ-65/28	50	80-120

Application
---------------------------------------------------WHAT CAN THE MACHINE PRODUCE----------------------------------------------
High Quality Fiber Reinforced Hose/Shower Pipe Machine Application & Features: 1.The production line is used in producting pvc reinforced pipe, which is widely used in the fields of industry,agriculture, forest, architecture etc. 2.Completed with two single screw extruders, one yarn braid machine and other auxiliary. 3.With different dies,it can produce different soft pipes.The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid. 4.Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.

Detailed Photos

Conical twin screw extruder.Adopting conical twin-screw extruder, unique designed screw, realizing shorting plasticizing time, good compounding and excellent plasticization.
super quality gear box and reducer, with nice outline, stable running, low noise and long service time.cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.
screw-core installing with internal temperature controlling system, barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super quality of the products.

Mould.
Specification:According to customer's requirements.
Mould Material:High Quality Mould Steel.
Head Heating:Stainless Steel Heating Ring.

Braiding machine.
Mesh weaving.
Spray Cooling Water Box. The spraying tank upper section is made of stainless steel,it has strong corrosion resistance and high hardness,The cooling tank has sprinkling device, using circulating water can save cost.
Hall-off machine. Haul-off speed:0.8-16m/min
Winding machine.

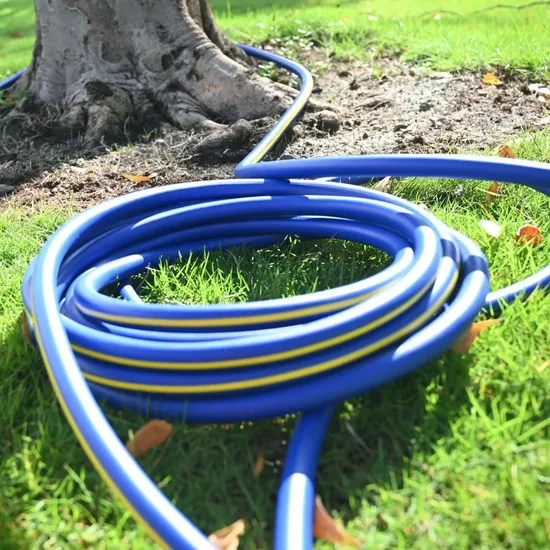

Final Products.
Company Profile
Our company is professional plastic products extrusion line manufacturer. We already have 20 years experiences in this industry. We mainly produce PP/PE/PC hollow sheet machines, pipe extrusion line,board extrusion line ,profiles extrusion line, sheet extrusion line, and auxiliary machines. Our company could supply turn-key project as feasibility report, workshop planning,technical support , testing, installation, training and after-sale service. We would like to supply high-class products and satisfy every customer's needs. The products sell well all over the country and exported to more than 50 countries like Southeast Asia, Australia, Russia, Middle East, African and South American. Our equipment to create the greatest value for customers is our constant pursuit. Customer Photos
Our Advantages
1.We are China Leading Plastic Machine Manufacturer.
2.Inspected by the Inspection Institution of SGS Certification.
3.100% QC inspection Before Shipmeng.
4.Best Quality & Best Service with Competitive price.
FAQ
Q: Your company is an industrial manufacture factory or a transactional company ?A: Yiertai Company is an industry manufacture of Extrusion Machines.Q:All of your products are made by your self or compacted via purchasing the others?A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products aremade by our technical team.Q:Annual Production Capacity( Previous Year)A: About 80 lines and total revenue is about USD 2500000Q: Is there quality control on all production lines?A: Yes, all production lines have adequate quality control Q:Do the QA/QC inspectors work independently from the production line?A: YesQ:How many QA/QC inspectors in total?A: 4Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)

---
