CNC-201 Solar & Wind Hybrid Power New Energy Generation Education Training Equipment

Product Description

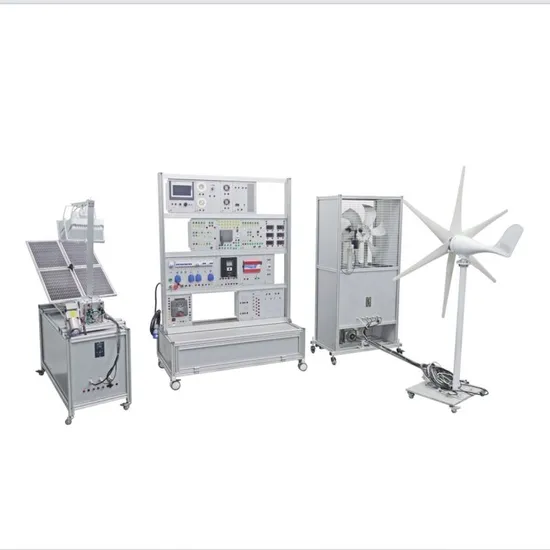

CNC-201 Solar & Wind Hybrid Power Generation Trainer Product Description
CNC-201 is a comprehensive solar & wind hybrid power generation training and simulation system. It has the following advantages:
(1) Support various researches
• It can support various researches on the combined application of wind and photovoltaic power generation.
(2) Adjustable Solar simulator
• It comes with altitude emulator, can adjust the angle of light source, simulating the sun's rising and falling.
• Andual-axis tracking platform is installed with the PV panel to realize the sun tracking function.
(3) Adjustable wind energy simulator
• It comes with direction emulator and VFD, can adjust wind speed and direction by yourself.
(4) Obtaining research data quickly
• The specialized instruments installed include: AC/DC voltmeter and ampere meters for investigation of system efficiency and characteristics.
CONFIGURATION

(1) Solar power generation system	(9) XFL-121 Wind turbine control module
(2) Wind power generation system	(10) XDY-001 Power supply control module
(3) Mobile aluminium experiment stand	(11) EB-091 AC & DC voltmeter & ammeter 1.0
(4) PMS-003 Programmable logic controller module	(12) XNB-103 Off-grid inverter 300W
(5) BMS-102 Inverter drive module (2.2KW)	(13) XBT-122 Storage battery group (12V)
(6) TSS-001 Human machine interface (HMI) module	(14) EB-411 Energy meter
(7) XCH-121 Solar & Wind hybrid controller (12V)	(15) XTF-001 Concentrator
(8) XGF-101 Photovoltaic tracking control module	(16) XZC-001 Capacitive load module

TRAINING CONTENT

(1) Solar panel open circuit voltage test	(3) Solar panel iv characteristic test experiment	(13) DC resistive and inductive load experiment
(2) Solar panel short circuit current test	(5) Solar panel transfer efficiency experiment	(14) AC resistive, capacitive and inductive load experiment
(11) Wind field control system experiment	(4) Solar panel maximum power output characteristics experiment	(15) Wind and solar hybrid AC and DC integrated output application
(18) PLC programming experiment	(8) Wind turbine voltage output characteristic curve measurement	(16) Electricity consumption measurement of wind and solar hybrid AC output load
(17) HMI monitoring and control experiment	(9) Automatic / manual two-axis solar tracking system experiment	(19) Complete system hardware assembly experiment
(6) Solar panel PV characteristics experiment	(10) Automatic / manual sun path control system experiment	(20) Complete system software design experiment
(7) Wind turbine start-up wind speed experiment	(12) Wind and solar hybrid controller experiment (wind/solar/combined)

>> CUSTOMIZATION
We support: logo customization, packaging customization, Graphic customization.(Min. order 2 set)
>> Port: Ningbo, Shanghai, or any ports in China
>> LEADING TIME

Quantity (sets)	1 - 5	>5
Time (days)	35	To be negotiated

Detailed Photos
Packaging & Shipping
Client Visit
Company Profile
Wenzhou CHOIEO (Qiaoou) Education Technology Co., Ltd. was established on January 22, 2019, with its registered address located in Heyi Village, Oubei Street, Yongjia County, Wenzhou city, Zhejiang Province.
Its business scope includes research and development, installation and sales of education software; Design, development and installation of teaching equipment, teaching instruments, teaching models, teaching training equipment, laboratory equipment, instruments and meters, professional skill appraisal equipment, intelligent manufacturing training equipment; Hardware products, metal products, low-voltage electrical equipment, office equipment, mechanical equipment, computer software and hardware research and development; Import and export of goods and technologies.
The company set independent production and import and export trade in one, specializing in vocational and technical education equipment export. The company has a young team, good technical reserves and long-term customer resources.
>> Company Environment
>> Meeting with Clients
>> Clients Training
>> Company Certificate
FAQ
1. Are you a trading company or manufacturer?
A: We are a factory. We specialize in vocational training equipment in China for 8 years, our products include AutomationTrainer,
Hydraulic and Pneumatic Trainer, Renewable Energy Trainer, PLC Technology Trainer etc.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Made-in-China, your order and money will be well guaranteed.
3.How can I know how my order is being done?
A: We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
4.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. For the overseas orders, we guarantee most accessories. Provided emails with details including pictures or short video, we will send guide manual or replacements at our cost to repair.
5. How long is your delivery time?
A: Generally, it is 10-15 days if the goods are in stock. Or it is 30-50 days if the goods are not in stock, it is according to quantity.
6. Do you provide OEM & ODM services?
A: Yes, we can do according to your requirement.
