PV DC 1000V 10*38mm Fuse Waterproof Electrical Solar Fuse Holder for Solar PV System Protection

Product Description

Product Description
Product overview
This series of cylindrical cap fuses is suitable for AC 50Hz, rated voltage up to 1000V, rated current up to 125A. Mainly used for overload and short circuit protection of electrical systems (gG/gL); It can also be derived for semiconductor device protection (aR) and motor protection (aM).
Basic data
Rated voltage :AC/DC250V, AC/DC500V, AC/DC690V, AC/DC1000V. Rated current :0.5A-125A
Usage categories :gG/gL, aR, aM
Breaking capacity :250V-100kA, 500V-100kA, 690V-80kA, 1000V-50kA. Compliant with standards :IEC60269-2, GB/T13539.2.Product Parameters
Fuse Link Parameters

No.	Model	Rated voltage(V)	Rated current(A)	External dimension
				øC±0.1	A	Attached picture
1	5x20	250V	0.5,1,2,3,4,6,10,12,13	5	20	picture1
2	5X25	250V	0.5,1,2,3,4,6,10,12,16	5	25
3	6X20	250V	0.5,1,2,3,4,6,10,12,16	6	20
4	6.3X23	250V	0.5,1,2,3,4,6,10,12,16,20	6.3	23
5	6.3X25	250V	0.5,1,2,3,4,6,10,12,16,20	6.3	25
6	6.3X31.5	250/500	0.5,1,2,3,4,6,10,12,16,20	6.3	31.5
7	8.5X23	250	0.5,1,2,3,4,6,10,12,16,20,25	8.5	23
8	8.5X31.5	250/500	0.5,1,2,3,4,6,10,12,16,20,25	8.5	31.5
9	8.5X36	250/500	1,2,3,4,6,10,12,16,20,25,32	8.5	36
10	10X30	250/500	2,4,6,10,12,16,20,25,32	10	30
11	10.3X28.5	250/500	2,4,6,10,12,16,20,25,32	10.3	28.5
12	10.3X31.5	250/500	2,4,6,10,12,16,20,25,32	10.3	31.5
13	10.3X34	250/500	2,4,6,10,12,16,20,25,32	10.3	34
14	10.3X38	500/690	2,4,6,10,12,16,20,25,32	10.3	38
15	10.3X65	690/1000	2,4,6,10,12,16,20,25,32	10.3	65
16	10.3X38T	500/690	2,4,6,10,12,16,20,25,32	10.3	38	picture2
17	14.3X38	500/690	2,4,6,10,16,20,25,32,40,50,63	14.3	38	picture1
18	14.3X45	500/690	2,4,6,10,16,20,25,32,40,50,63	14.3	45
19	14.3X51	500/690	2,4,6,10,16,20,25,32,40,50,63	14.3	51
20	14.3X65	690/1000	2,4,6,10,16,20,25,32,40,50	14.3	65
21	15X50	500/690	16,20,25,32,40,50	15	50
22	16.7X35	250/500	16,20,25,32,40,50,63	16.7	35
23	18X37	250/500	2,4,6,10,16,20,25,32,40,50,63	18	37
24	18X50	500/690	2,4,6,10,16,20,25,32,40,50,63	18	50
25	20.5X40	500/690	2,4,6,10,16,20,25,32,40,50,63	20.5	40
26	20.5X76	500/690	2,4,6,10,16,20,25,32,40,50,63	20.5	76
27	20.5X114	690/1000	2,4,6,10,16,20,25,32,40,50,63	20.5	114
28	20.5X127	690/1000	2,4,6,10,16,20,25,32,40,50,63	20.5	127
29	22.2X58	500/690	16,20,25,32,40,50,63,80,100,125	22.2	58
30	27X60	500/690	32,40,50,63,80	27	60
31	27X139	690/1000	32,40,50,63	27	139
32	27X147	690/1000	32,40,50,63	27	147
33	30X57	500/690	16,20,25,32,40,50,63,80,100,125	30.1	57
34	14.3X51H	500/690	2,4,6,10,16,20,25,32,40,50,63	14.3	51	picture3
35	20.5X76H	500/690	2,4,6,10,16,20,25,32,40,50,63	20.5	76
36	20.5X114H	690/1000	2,4,6,10,16,20,25,32,40,50,63	20.5	114
37	20.5X127H	690/1000	2,4,6,10,16,20,25,32,40,50,63	20.5	127
38	22.2X58H	500/690	16,20,25,32,40,50,63,80,100,125	22.2	58
39	27X139H	690/1000	32,40,50,63	27	139
40	27X147H	690/1000	32,40,50,63	27	147

External dimension
Fuse Holder Parameters

No.	Model	Rated voltage(V)	Rated current(A)	Models/sizes available with fuse link	External dimension
					Attached picture
41	RT14-20	500/690	20	10X38	Attached picture

No.	Model	Rated voltage(V)	Rated current(A)	Models/sizes available with fuse link	External dimension
					A	E	H	H1
42	RT14-32	500/690	32	14X51	105	26	55	128
43	RT14-63	500/690	63	22X58	124	34	65	143

No.	Model	Rated voltage(V)	Rated current(A)	Models/sizes available with fuse link	External dimension
					Attch picture
44	RT18-32G	690V	32	10X38	Attch picture

No.	Model	Rated voltage(V)	Rated current(A)	Models/sizes available with fuse link	External dimension	Weight(g)
					Attch picture

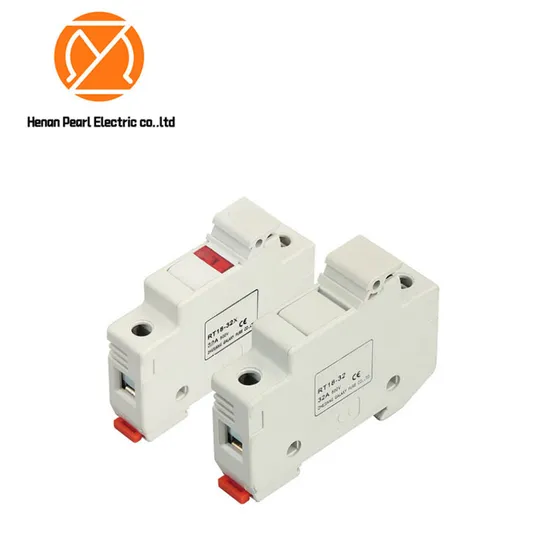

45	RT18-32	500	32	10X38	Attch picture	35
46	RT18-32X	500	32	10X38		48

No.	Model	Rated voltage(V)	Rated current(A)	Models/sizes available with fuse link	External dimension	Weight(g)
					Attch picture
47	RT18-63	690	63	14X51	Attch picture	114

No.	Model	Rated voltage(V)	Rated current(A)	Models/sizes available with fuse link	External dimension	Weight(g)
					Attch picture
48	RT18-125L(RT18L-125)	690	125	22X58	Attch picture	182

Packaging & Shipping
FOR FREE: Design new sticker label with your own LOGO
Popular packing:If you need custom package, we will do as your requirest.
OEM service:Support different customized packing
Company Profile
Henan Pearl Electric co., Ltd, is a professional manufacturer and exporter that is concerned with the design, development and production of Electric products. Since its inception, we have consistently uphold: "customer first, service first, genuine" business philosophy, always uphold the integrity, innovation, development-oriented principle.The company has experienced design team, industry-leading R & D capability and strong manufacturing strength, the product always follow the current fashion trends emerging, high-quality, world-renowned.Henan Pearl Electric co.,ltd sales to United States, Europe, Australia, Mid East, Africa and other countries, and we sincerely hope to establish friendly business relations with customers from all over the world.The company's operating philosophy: adhere to customer-centric, technology and innovation as the fundamental, continued to improve the user experience, improve product and service quality.The company's vision: "value-creating" leader.Through constant innovation and improvement of marketing value-added services, to continuously improve market share and customer satisfaction, so that we become Chinese electric industry "value-creating" leader.
Our Advantages
1.we can do the designs according to the customer requirement
2.we can make customized mould according to customer reuirement
3.we can offer you the high quality production & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design team
6. promptly delivery. small order is welcome.
FAQ
Q1: Are you a factory or trading company?A1: We are a factory, and guarantee our price is first-hand, cheap and competitive.
Q2: How does your factory do regarding quality control?A2: All the products will be 100% checked before the shipment.Q3: When can I get the price?A3: Usually we quote within 24 hours after we get your inquiry.Q4: What is the price of shipping?A4: Depending upon the port of delivery, prices varies. We will choose best shipping for you. Q5: What you lead time?A5: Our standard models are in stock ,as for big orders ,it take about 15 days.

---
