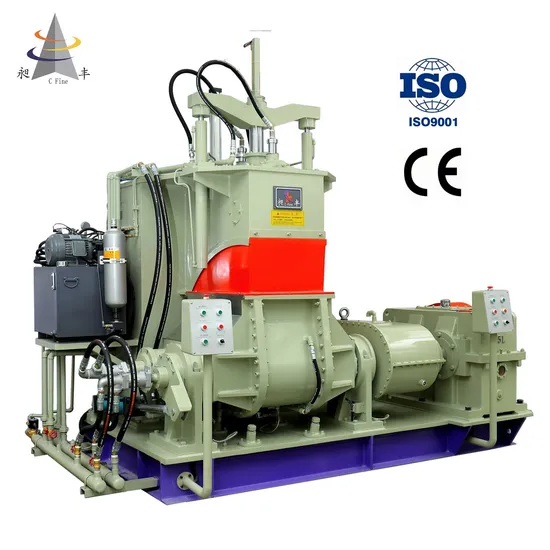

CF-55/75L Production Internal Kneader Mixer Easy to Operate with Electrical Control

Product Description

CF- Kneader 25L/35L/55L/75L/110L/150L
1. Using elliptic shear rotor, the surface of the rotor is coated by wear-resistant surfacing hard alloy, chromate plated for the inside of the mixer chamber surface, abrasion resistant and corrosion resistance, and increase the useful life. 2. Adopted circulation channel structure to achieve the heat conduction medium circulation for the rotor, the mixer chamber and the top peg. According todifferent requirements of production process, via steam, oil, electric heater or cooling water to cooling or heating. 3. Advance sealing system. 4. The top peg put pressure to the material by cylinder, forced to knead the material evenly to increase productivity. The electric controlling system is adopted the famous brand in China, controlled by manual or automatic, easy to shift and operate reliably.

CF- Kneader Model	CF-25L	CF-35L	CF-55L	CF-75L	CF-110L	CF-150L
Production rates in kg/batch
Output per batch	20-28	30-40	50-60	70-80	100-120	150-180
Applicable materials	Suitable for to mix the rubber and plastic raw materials.
*All rates should be factory verified.

CF- Kneader Model		CF-25L	CF-35L	CF-55L	CF-75L	CF-110L	CF-150L
Power	kW	37	45	75	110	160	220
Max. rotor speed	RPM	40	40	40	40	40	40
Tilter Motor	kW	1.5	2.2	3	4	5.5	7.5
Tilter Angle		110	110	110	110	110	110
Heating		Friction	Friction	Friction	Friction	Friction	Friction
Overall weight	KG	4200	6000	8500	9600	14000	18500
Length	mm	2750	2900	3450	3600	3800	4700
Width	mm	1750	2000	2290	2290	2550	3350
Height	mm	2750	3000	3400	3380	3900	4000
*All rates should be factory verified.

ROTOR
Design: the rotor leaf adopts prismatic design, two-leaf four pronged rotor, and the shaft center is hollow, which can pass cooling water.
Material processing:
Rotor shaft: Forged and heat-treated and tempered with high carbon steel and other alloy steel forging by heat treatment and tempering, deep carbonization 72 hours, the thickness of 0.12~0.18mm, its hardness of HV950~1050, to ensure that the rotor shaft hardness is high, high load-bearing capacity, torsion, without breaking the shaft, smooth transmission.
Rotor blade: Precision CNC machined from high carbon steel by precision CNC, HRC 55~62, to ensure wear-resistant and durable.
Anti-Leakage Technology CFine's unique anti-leakage device:
CFine's unique anti-powder leakage device adopts mechanical shaft sealing compression technology and is sealed with self-lubricating sealing ring, so that the sealing ring is always in the state of compression sealing during the mixing process.
The self-lubricating sealing ring can reduce the wear and tear of the kneading system and effectively reduce powder leakage and noise.
After-sales service In-sale
Strict implementation of the production schedule, real-time reporting on production progress, so that customers can understand the latest progress.
After-sales
1. One year warranty under the condition of correct operation of the unit, and ensure the supply of spare parts.
2. Before shipment, we are responsible for the installation and debugging of the equipment, and shoot a video for customers to confirm.
3. After shipment, provide English (or local language) operation manual and installation video of the equipment.
4. Provide video safety operation training for equipment personnel.
5. 24-hour online answer to solve problems.
6. In case of special circumstances, we can provide engineers to visit the site, the specific cost and time agreed by both parties.
Guangdong CFine Technology Co., Ltd. was established in 2013, is a manufacturer that specialized in designing, R&D, manufacturing, selling and maintain the plastic, rubber, powder metallurgy mixing and granulating equipments. The company has a unique courtyard, covering an area of 12000 square meters, a building area of 10000 square meters, and a team of nearly 100 people.
We have very professional R&D team to meet the special requirements of customers, to custom-made the machine. We have strong technical strength, full range of advanced equipments and well -trained manufacturing team, together with modern management mode, convenient and swift after-sale service, thus our machines are sold more than 100 countries, obtained accordant appreciation by the clients and we had established long-term and stable relationships of cooperation.
Quality first,service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. C Fine is becoming the most professional and influential manufacturer in this industry, C Fine brand is most popular in China, and also available to the world in the near future!

---
