Vertical Drilling Machine Upright Drilling Machine 45mm Drilling Capacity Z5045c-1

Product Description

1.Features
1)Drilling ,milling and tapping
2)Spindle speed step-changed cyclically,spindle auto-feeding and cyclic change of feed speed
3)Head swivels 360° horizontally
4)Headstock and worktable up &down perpendiculary
5)Super high column
6)Precision micro feed
7)Positive spindle lock
8)Distinct auto device for releasing tools operate very easily
9)Gear driven ,lower noise Main Applications This machine tool is a kind of universal machine tool which is mainly applicable for drilling as well as for hold slash, spot facing, chamfering, reaming, tapping, boring.
Headstock can be moved up and down, and rotated 360º around the vertical column, middle worktable can be move left and right or front and back , Headstock (except (Z5045/1)) can be leaned ±90º .
Move headstock and work table by worm gear, easily operate. Depth of dill is ensured by scale fixed on sleeve and Setting nut.
In order to easily change tools the automatic tool-stripping device is mounted in the spindle.

2.Specification

Drilling Machine	Z5045C/1
Max. drilling capacity	45mm
Spindle taper	M. T. 4
Spindle travel	130mm
Step of speed	6
Range of spindle speed 50Hz	80-1250 r. p. m
60Hz	95-1500 r. p. m
Step of spindle auto-feeding	6
Range of spindle auto-feeding amount	0.06-0.30mm/r
Min. distance from spindle axis to column	290mm
Max. distance from spindle nose to worktable	700mm
Max. distance from spindle nose to stand table	1125mm
Max. travel of headstock	250mm
Swivel angle of headstock(horizontal)	360°
Max. travel of worktable bracket	600mm
Worktable size of avaliablity	730*210mm
Swivel angle of table horizontally	360 degree
Size of stand worktable of avaliability	417× 416mm
Worktable travel(X/Y)	500mm/205mm
Vertical travel of workable	570mm
Motor power	1.5KW(2HP)
Voltage/Frequency	As customer' s requirement
speed of motor	1400 r. p. m
Cooling pump power	0.04KW
Net weight/Gross weight	442kg/492kg
Packing size	1850× 750× 1000mm
Loading amount	18pcs/20" container

3.Standard accessories : drill chuck1-13mm, Removing Block,Drill chuck arbor
4.Optional accessories :
90mm paraller vise:
125mm paraller vise:
.milling cuttter holder:
.drill chuck:
.Mill chuck
Coolant system
Working lamp
Auto-tapping electrical
Boring bar
150mm rotary table

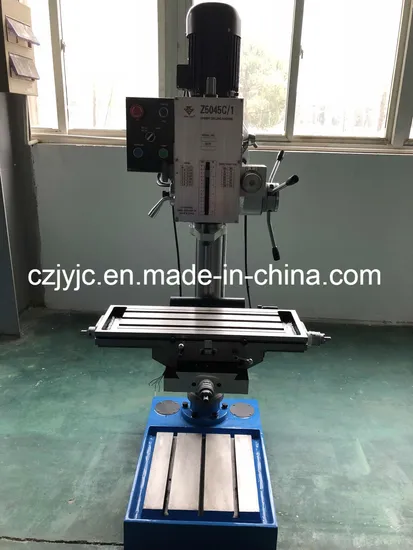

5.Machine photos
6.Manufacturing Capability

---
