Macinte Assorting Grating Strip Picking Put Pick to Light System Ptl

Product Description

Product Description Macinte Assorting Grating Strip picking Put pick to light system PTL
Macinte PTL system has been successfully applied to the warehousing and logistics distribution of e-commerce, fresh cold chain, chain convenience store, jewelry, medicine and other industries. Help users improve efficiency and reduce costs.
Our system can seamless docking user's ERP,MES , and other WMS systems , improve efficiency, prevent mistakes.
Customers can also develop their own program to control the device .

	Manual to distribute and recheck	DAS
Cost	Few software and hardware input	Need some space for operating
ErrorRate	High error rate	Low error rate ,less than 0.03%
Skill requirement	High	Low
Efficiency	Low	A staff 400orders/day
Other	Hard to check for receiver	Documents correspond to the goods ,easy to check

PRODUCT SPECIFICATIONS

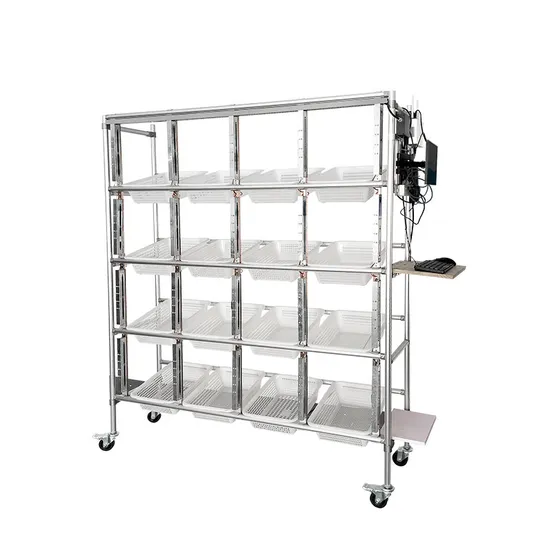

Single side grating lighting integrated rack
No	Model	JYPL-G8-D3
1	Rack Type	G3 lean tube
2	Lattice size quantity	300*300mm,16 Lattices,4 floors *4 columns
3	Gratingtype	G1 lean tube 16 lattice port mobile, beam spacing 30mm
4	Bus Controller	JYZK-B1-WIFI
5	Computer host	MINI 4 core \8G\256G solid state
6	Display, mouse, speaker	15 inch HD, USB speaker
7	Voltage	100-240VAC
8	Pick-up truck specification	G1 lean tube 16 lattice port mobile

DAS Wall - Classification

Rack type single side wall PTL hardware install on one side of the rack . Operator put on the take down the goods from same side of the DAS wall .	Rack type double sides DAS Wall PTL labels install on both sides of the rack . Operator put the iteam on front side wall and take down the items to packing from the back side wall after corresponse order is complete.
Mobile DAS Wall PTL hardware install on the mobile rack . Pushing the DAS wall to the operating area , pushing it to the packing area after operation complete .	Mobile/Fixed DAS Wall + Sorting rack PTL install on DAS Rack. Pushing the mobile sorting rack behide the DAS wall .Operating on the DAS wall and pushing the sorting rack to the packing area when operation complete . Let another sorting car behide the DAS Wall to continue operating

DAS wall Product Selection
Mode	Working mode of DAS Wall	Application scenario	Hardware configuration
1	Sensing DAS Wall	Single item sensing	1. Wireless scanner2. Grating/strip3. Alarm light(Optional)
2	Sensing DAS Wall	1. Sigle item Sensing 2. Multi items press light	1. Wireless scanner2. 3digits label+grating3. Alarm light(Optional)
3	Sensing DAS Wall	1. Single item sensing 2. Multi items press light	1. Wireless scanner2. 3digits label+Strip3. Alarm light(Optional)
4	DAS wall	Multi items press light	1. Wireless scanner2. 3digits label3. Alarm light(Optional)
5	DAS wall	Single item press light	1. Wireless scanner2. Press able label3. Alarm light(Optional)
6	Double sides DAS wall	Box closing size no need scan	1. Label :Pressable
7	Double sides DAS wall	Box closing size need scan	1. Wireless scanner2. Label : Unpressable

Successful Project
System architecture 1. Data source: The existing WMS system, ERP, MIS, etc. or manually inputting the information. 2. Control PC: Using to download the order from WMS and send the outbound information to Intelligent BUS module through network switch. 3. Network switch: From one interface to multiple interfaces, also known as the bridge. 4. Intelligent BUS: control the work of signal lamp and electronic tags of captioning machine, and transmit the completed job information back to PC. Achieve two-way communication. 5. Alarm light: used in the working area to prompt the task to be done in the area. 6. multi-function label: can be connected to the alarm light and scanning gun. 7. electronic label: used to display the goods location, quantity and send out indicating information.
PRODUCT CONFIGURATION

Achieve two-way communication signal lamp and electronic tags
No	Model	JYZK-B1	JYZK-B2	JYZK-B1-WIFI
1	Working Voltage	100-264V	100-264V	100-264V
2	Max input current	1.0A	1.5A	1.0A
3	Communication distance	500m	500m	500m
4	Working environment	-30ºC~60ºC	-30ºC~60ºC	-30ºC~60ºC
5	Ethernet interface	10M/100M	10M/100M	WiFi Interface :2.4G 802.11b/g/n
6	Network port mode	TCP Client ,TCP Server ,UDP Client ,UDP Server		STA mode AP mode AP+STA mode

Installation Instructions
Company Profile Shenzhen Macinte Intelligent Equipment Co., Ltd. was founded in 2002, which is a national high-tech enterprise, shenzhenhigh-tech enterprise, shenzhen double soft enterprise. Main products include automatic weight checking devices, weight testingmachine, weigher sorting machine, online weighing and culling machine, pick to light system, line shaft diverter system, DWSsystem, logistics conveying control system, etc. We have marketing centers, R&D centers and production bases in ShenZhen andChangSha.Our company has an expert team composed of a number of doctors, field application engineers, etc., long-term focus onalgorithm research, application development, industrial applications, has obtained a number of national invention patents. We aimat "professional casting quality, scientific and technological achievements future" ,and walking in the technical front.

---
