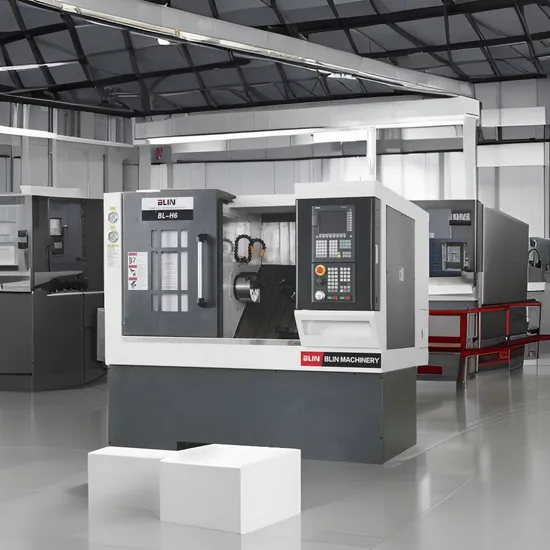

Slant Bed CNC Lathe (BL-H5/H6)

US$20,000.00-22,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

BL-H5/H6

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Inclined Guide Rail

Tool Holder

8/12 Station

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Semiautomatic

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Chuck Size

6′′/8′′/10′′

Max. Swing Dia. Over Bed

400mm

Max. Turning Length

340mm

Max. Turning Dia.

300mm

Spindle Bore

56/66mm

Spindle End Type

A2-5/A2-6

Spindle Speed

5000rpm

Spindle Motor Power

7.5/11kw

Positioning Accuracy(X,Z)

0.008/1000mm

Repeat Positioning Accuracy(X,Z)

≤0.005mm

Transport Package

Wooden Case

Specification

400*340mm

Trademark

BLIN

Origin

China

HS Code

8461500090

Production Capacity

480 Units/Year

Packaging & Delivery

Package Size

250.00cm * 320.00cm * 250.00cm

Package Gross Weight

250.000kg

Product Description

- Adopt TAIWAN technology, most parts adopt GERMAN/JAPAN/TAIWAN brand
- Adopt 45°mono-block slant bed design
- Adopt wide linear guideway,high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision spindle unit(H5 can choose 6000rpm synchronous servo electro-spindle), spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision C3 class pre-stretched ball screw,coupled with feeding motor directly by linkager, no gap
Details:
* As option

Item	Specification	Unit	BL-H5		BL-H6
Capacity	Chuck size	/	collet/5'' chuck*		6'' chuck/8'' chuck*	8'' chuck/10'' chuck*
	Max. swing dia. over bed	mm	Φ320		Φ400
	Max. swing dia. over slide	mm	Φ126		Φ126
	Max. turning length	mm	320		340(Gang tool);300(8T tool turret)
	Max. turning dia.	mm	Φ300		Φ300
	Standard turning dia.	mm	Φ120		Φ150
Spindle	Spindle bore	mm	Φ36	Φ46	Φ56	Φ66
	Spindle end type	/	A2-4		A2-5	A2-6
	Max. bar through dia.	mm	Φ24	Φ35	Φ45	Φ51
	Spindle speed	rpm	6000	5000	5000	4000
	Spindle motor power	kw	5.5	7.5	11
X/Z axes	X axes travel	mm	420		460
	Z axes travel	mm	320		340
	X/Z axes linear guideway width	mm	30/30		35/35
	X axes ball screw O.D/pitch	mm	Φ25/10		Φ32/10
	Z axes ball screw O.D/pitch	mm	Φ32/10		Φ32/10
	X/Z axes rapid moving speed	m/min	30/30
Tool post	Tool turret type	/	Gang tool		Gang tool/8T hydraulic tool turret*
	Toolshank size	mm	20×20, Φ25		20×20, Φ25		25×25, Φ32
Tailstock	Tailstock quill taper	/	None
Accuracy	Positioning accuracy(X,Z)	mm	0.008/1000
	Repeat positioning accuracy(X,Z)	mm	≤0.005
Others	Overall size	mm	1750×1590×1800		2140×1780×1780
	N.W.	kg	1900		2700	2800

Main parts list:

Item	Brand
Spindle unit	CHIAN top brand synchronous servo electro-spindle/TAIWAN-ROYAL
Tool turret	TAIWAN-GSA/YULIN/SWIFT
Ball screw	H5: TAIWAN-HIWIN C3 class H6: JAPAN-THK
Ball screw bearing	GERMANY-FAG
Linear guideway	H5:TAIWAN-HIWIN P class H6: JAPAN-THK
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Heat exchanger	Joint-venture
Main electricity parts	FRANCE-SCHNEIDER

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic collet/chuck
-Gang tool/8T hydraulic tool turret
Optional configuration:
-SYNTEC/FANUC CNC controller
-Live tool
-Chip conveyor
-Bar feeder
Other models choice:
All our machines range:
