US$17,500.00-98,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Plastic Injection Molding Machine
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
380V,50gzm According to Countries
Showroom Locate
Maylasia,Russia,Turkey,Uzberkistan
Space Between Tie Bar
570*520 mm
Transport Package
Standard Package
Specification
6.5*1.34*2.1
Production Capacity
7000 Sets / Year
Product Description
Specializing in PET series of injection molding machines
1.Adopt the special designed screw and large torque melt motor, in order to facilitate PET raw materials plasticizing and molding;
2.The ejector system can well meet the production of PET products;
3.With the high-power motor-pump system, it can achieve shorter cycle time;

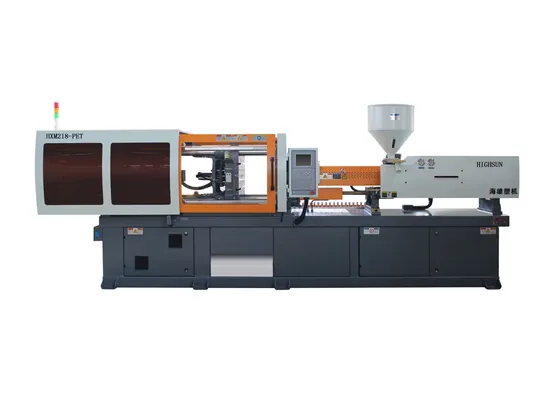

1.Picture
| MODEL:HX(*)228PET |
| TECHNICAL PARAMETER TABLE |
| INJECTION UNIT | SCREW DIAMETER | mm | 65 |
| SCREW L/D RATIO | L/D | 24 |
| INJECTION CAPACITY (THEORETICAL) | cm3 | 962 |
| INJECTION WEIGHT(PET) | g | 1116 |
| INJECTION PRESSURE | MPa | 156 |
| INJECTION RATE | g/s | 447 |
| PLASTICIZING CAPACITY | g/s | 76 |
| SCREW SPEED | rpm | 190 |
| CLAMPING UNIT | CLAMP FORCE | KN | 2280 |
| OPEN STROKE | mm | 520 |
| MAX. MOULD HEIGHT | mm | 580 |
| MIN. MOULD HEIGHT | mm | 200 |
| SPACE BETWEEN TIE-BARS (W×H) | mm | 570*520 |
| EJECTOR STROKE | mm | 100 |
| EJECTOR FORCE | KN | 160 |
| EJECTOR NUMBER | n | 9 |
| OTHERS | PUMP PRESSURE | MPa | 17.5 |
| MOTOR POWER | KW | 38 |
| HEATING POWER | KW | 22.7 |
| MACHINE DIMENSION (L×W×H) | m | 6.5*1.34*2.1 |
| MACHINE WEIGHT | t | 6.9 |
| | OIL TANK | L | 281 |
2.Application
3.Processing,assembling production line
5.Loading containers
6.Customer case
Client in Uzbekistan produce PET preform for minaral water factory.
7.Client in Malaysia
>>
