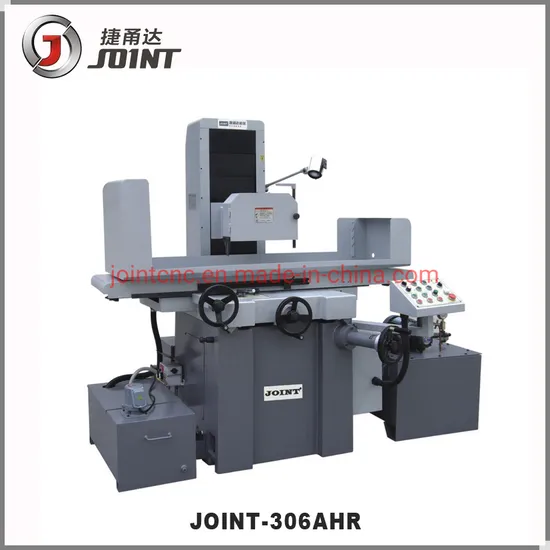

Automatic Grinding Finishing Machine for Metalworking Surface 306ahr

Product Description

Suitable for high precision manufacturing industry
1. Durable, high precision and high quality.
2. Imported high accuracy grinding head.
3. High quality resin, ageing treatment.
4. Taiwan high quality hydraulic system and high precision grinding head.
Specification

Model			306AHR
Table size		mm	600*300
X axis travel		mm	640
Y axis travel		mm	320
Table side way			Slide way
Max distance from spindle center to working table		mm	580
Auto corssward feed			0.1-8
Crossward feed of hand wheel		1 Rev	5
		1 Div	0.02
Vertical feed of hand wheel		1 Rev	2
		1 Div	0.01
Rotation speed	50HZ	rpm	1450
	60HZ	rpm	1750
Grinding wheel size			Φ355×(20-45)×Φ127
Spindle motor			5*4
Hydraulic motor			2*4
Crossward driven motor			0.08*4
Vertical driven motor			0.1*4
Dimension (L*W*H)		mm	2200*1740*1830
Weight		kg	2100

X and Y axis is automatically, Z axis is elevating motor
Standard accessories:
1. Electrical magnet chuck
2. Coolant system
3. Grinding wheel
4. Oil pump
5. Working light
6. Wheel balance arbor
7. Wheel flange and extractor
8. Wheel dressing diamond tip and holder
9. Chuck controller
10. Motor controller
11. Tool and toolbox
12. Operation manual
Optional accessories:
1. Demagnizer
2. Vice
3. Punch dressor
4. Universal dressor

Company Profile Shenzhen Joint Technology Co., Ltd. specializes in R&D and manufacturing mold processing and machinery parts processing equipment, we developed high quality and high-tech research, development, manufacturing, service team and management system, and expanded products to more than 11 series from milling machines, to machine center,mechanical arm, automation. With the exceptional quality products and distinct brand reputation, our products are sold to more than 40 developed cities all over China, and also to more than 20 countries all over the world across Asia, Europe and America.Our company takes the high quality product as orientation, R&D ideas is to provide customers with the most suitable quality products, became a professional machine tool manufacturer with a complete product line of mould and parts processing machine tool and strong tailor-made design capability in China. Core strengths 1. Standardize processes and operating mechanisms, high standards production and testing software and hardware - Ensure stable product supply and service support.
2. We insist in-depth research and technological precipitation for more than 20 years - Promote rapid innovation and progress in products and technology.
3. Comprehensive information management systems such as ERP and CRM - JOINT has formed a efficient operation and continuous improvement system.
4. Integrity, collaboration, innovation, and win-win spirit - we JOINT has established a strong and stable supply chain, and a large long-term win-win customer base. Special advantages 1. Provide more practical customized products
2. Provide CNC product applications support
3. Provide integrated solution for auto production line
4. Provide integrated design of mold, and parts processing production line
Qualifications and honors 1. National High-tech Enterprose
2. Shenzhen famous brand "JOINT"
3. Member of China Quality Association
4. Member of China Machine Tools Association
5. Vice-chairmen of Shenzhen Machinery Association
6. CE certification on milling machine, grinidng machine and machine center.
7. More than 150 patents on invention, utility model patent and software copyright etc.
8. Guangdong famous trademark
FAQ Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
