SRL-W Series Horizontal Mixing Unit / PVC High Speed Mixer

Product Description

SRL-W Series Horizontal Mixing Unit
Product Description
The equipment is used in plastic materials mixing, stirring, coloring, drying. It is an ideal choice to produce plastic plate, pipe, special-shaped material and degradation plastic.

Main Features
1.It is developed by importing and absorbing overseas advanced technology, and mixing materials adopts negative pressure mixing principle.
2.The electric equipment and meters all adopt imported famous brand.
3.By adopting PLC control, it features high automatic level, good mixing result.
4.The vane is made of stainless steel pressure die cast, and has passed the test of dynamic and static equilibrium.
5.The vane of the cooling machine adopts the spiral agitation. That makes the whole room no dead angle, quickening the cooling speed, discharging thoroughly.
6.Its mixing efficiency has come up to international advanced level.

Product Parameters

Model	SRL-W300/1000	SRL-W500/1500	SRL-W800/2000	SRL-W1000/3000	SRL-W800*2/4000
Total volume(L)	300/1000	500/1500	800/2000	1000/3000	800*2/4000
Effective volume(L)	225/700	330/1000	600/1500	700/2100	1200/2700
Mixing blade speed(rpm)	475/950/80	430/860/70	370/740/60	300/600/50	350/700/65
Mixing time(min)	8-12	8-15	8-15	8-15	8-15
Motor power(kw)	40/55/7.5	55/75/15	83/110/22	110/160/30	83/110*2/30
Weight(kg)	3300	4200	5500	6500	8000
Heating and cooling way	electric heating/ Self friction/ water cooling
Unloading way	Pneumatic

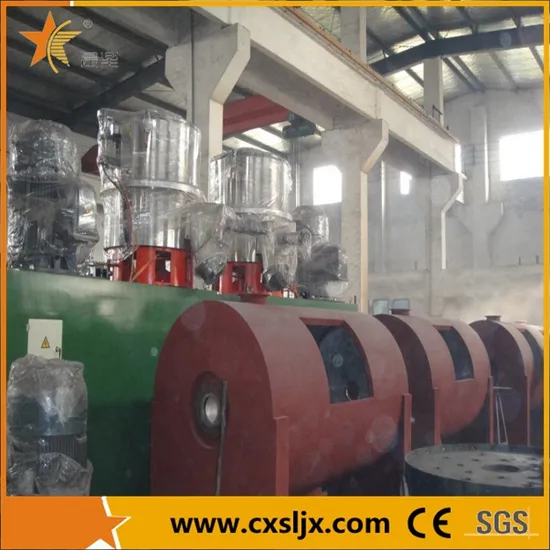

Detailed Photos

More Products for Options

Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.
FAQ
Q: Are you factory or trading company?
A: We are a manufacturer professional in the plastic machinery industry over 20 years.
Q: How can you guarantee your quality?
A: We test each machine before delivery to ensure that it is in perfect condition.
Q: Do you have any after-sales service?
We offer 12 months warranty period. During this period, we can provide parts for free due to manufacture quality issues, human error is not included.
