Flexible Film LED Display Adhesive LED Transparent Film Screen on Glass

Product Description

Product Description1. The unit cabinet adopts a borderless design to improve product transparency.
2. Ultra-light and ultra-thin, weight 6kg/m², thickness at the thinnest part of the screen 3mm.
3. The power signal wiring inside the screen adopts wireless PCB hard connection, which is clean and beautiful.
4. High permeability can reach over 60%~86%.
5. Support point-by-point cutting to adapt to special-shaped installation environments.
6. Quickly stick to steel glass for easy installation without steel structure.
7. Use anti-UV, anti-ultraviolet and flame-retardant materials.
8. Use anti-static materials.
9. The production process is resistant to cold soldering.
10. Transparent PC uses optical grade materials.
11. Aluminum profile control box molding and precision machining.

Product specification	P4-8
Pixel pitch	4mm*8mm(x*y)
Pixel	31250 points/M2
LED specification	SMD2121 (light drive in one)
Pixel composition	1R1G1B
Module Size	1000mm*240mm
Module Resolution	250*30
Pixel resolution	250*125/M2
Permeability	≥85%
Box wiring mode	Internal wiring (clean back)
Weight	≤ 3.5KG/M2
White balance brightness	≥3000cd/M2
Peak power consumption	400 W/M2
Average power consumption	About 200 WM2(depending on the video source)
Refresh frequency	≥3840s
Grayscale level	16Bit
Brightness control level	Grade 0-255
Color temperature	3200K-8500K (adjustable)
Frame change frequency	≥60Hz
Viewing angle	H-H140 degrees V-V140 degrees
Input signal	DVI VGA, composite video
Control screen mode	Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)
Protection grade	IP30
Power supply requirements	AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)
working temperature	-20~50 ºC
Theoretical service life	100000 hours

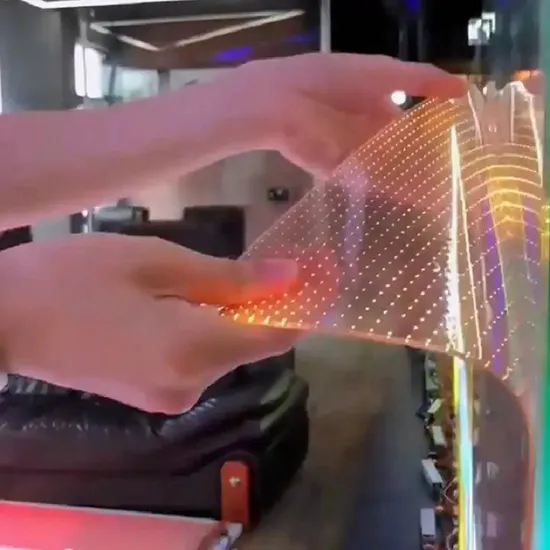

Product Pictures
1. Thin and light, high transparency, easy to install2. HD full color, clear picture 3. It can be cut freely and is used for retail stores, glass 4.Installation method 5.Application Scenarios Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are led display manufacturer.
Q: How can I get the technical support?
A: We support remote video control at now.
Q: What is your payment term? How long it takes to delivery?
A: We usually accapt the T/T . Both of them will at least 30% deposit in advance, and the rest of 70% will paid before delivery. The lead time is usually 20 day.
Q:How long is the warranty period?
A: Non-artifical damage,the standard warranty is 1 year.
Q: How about the freight cost?
A: The shipping cost depends on different weight. We will choose the cheapest and safest way according your order quantity.

---
