Swiss CNC Lathe for High-Performance Manufacturing of Small Parts

Product Description

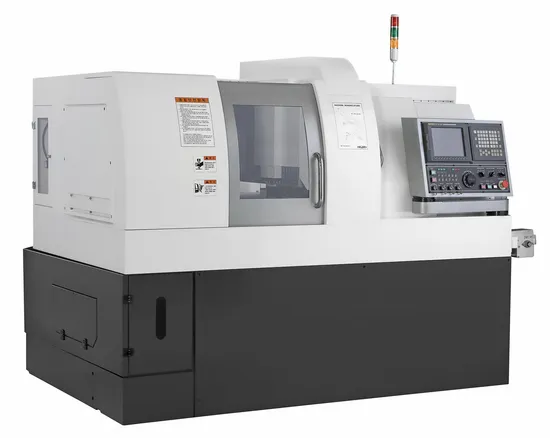

Swiss Lathe/CNC Automatic Lathe 5-axis -425
The Swiss-type lathe stands as a testament to cutting-edge CNC automatic lathe technology, symbolizing the pinnacle of precision machining. Celebrated for its extraordinary accuracy and unwavering consistency, this machine shines as a beacon of innovation within the world of precision engineering, delivering unparalleled quality and performance.
Discover the zenith of multi-functional processing with our revolutionary Swiss-type lathe. Witness its finesse in executing tasks such as tapping, milling, drilling, and turning with remarkable precision. Equipped with dual spindles and a cutting-edge double Y-axis, this machine not only accelerates processing time but also maximizes efficiency, making it the ultimate choice for batch operations of uniquely shaped, non-standard parts. Perfect for precision hardware and shafts, this engineering masterpiece is crafted to perfection.Enter a world of superior precision with our groundbreaking Swiss-style lathe, an outstanding innovation in CNC automatic technology. This remarkable machine transforms your workshop, flawlessly performing a variety of operations such as tapping, milling, drilling, and turning with exceptional accuracy. Featuring dual spindles and a state-of-the-art double Y-axis, it embodies peak operational efficiency, enabling simultaneous processing to significantly reduce production time. Specifically designed for batch production of intricate, non-standard components, it excels in creating precision hardware and intricately formed shafts, setting new benchmarks in manufacturing excellence.
Product Description
Embrace the future of metal manufacturing excellence with our Swiss Type CNC Lathe Machine, a true masterpiece for precision engineering aficionados. This extraordinary machine features an impressive 210mm Spindle Stroke Capability, revolutionizing the realm of CNC Swiss machining. With remarkable sophistication, our sliding headstock skillfully maneuvers a portion of metal stock through the guide bushing with unparalleled precision. Contained securely within the sturdy chuck, the remaining workpiece is expertly held behind the guide bushing, ensuring utmost stability and unrivaled precision. Embark on your crafting journey with absolute confidence and masterful finesse.Experience the unmatched artistry of our CNC Swiss machine as it precisely crafts each workpiece section to perfection. The bar stock glides along the z-axis with ease, heralding the immaculate machining of subsequent sections. This segmented approach exemplifies swift and precise manufacturing, brilliantly countering part deflection from intense cutting forces. It significantly enhances the accuracy and quality of the final product, setting an unparalleled standard in precision machining.Uncover the engineering brilliance of contemporary Swiss-style lathes, equipped with one or two main spindles and accompanied by one or two secondary back spindles. The main spindle serves as the heart of most machining operations, offering unmatched performance. Meanwhile, the innovative secondary spindle, strategically positioned behind the part, meticulously collects the part after cutting. It seamlessly performs secondary operations, such as drilling or tapping previously inaccessible sections of the workpiece, embodying versatility and efficiency with every rotation.At the culmination of these complex operations, the secondary spindle gracefully deposits the finished part into a collection bin, streamlining the entire process and eliminating the manual intervention typical of standard CNC turning machines. When it comes to material versatility, Swiss lathes lead the way, proficiently managing a variety of metals including carbon steel, aluminum, stainless steel, and brass, while skillfully machining certain plastics like nylon and polycarbonate. Although less common for wood, delight in the superior craftsmanship and efficiency that highlight the prowess of our Swiss Type CNC Lathe Machine.

Product Parameters

Items		SC425
Mechanic	System	FANUC 0i TF-PLUS	SYNTEC 220TB
	/Max.RPM	Main8,000min-1/Sub8,000min-1	Main6,000min-1/Sub6,000min-1
	Max.Turning Diameter	φ42mm
	Main Spindle Stroke	210mm
		5000rpm
		φ10mm
		M8/M6
		φ10mm
		M8
	Rapid traverse speed	32m/min(X1:24m/min)
Tools	O.D Tools	4X [16×16]+1X [20×20]
	I.N Tools	3X [φ25-ER16]+2X [φ20-ER16]
	()Cross Driven Tools(integration)	4X [ER16]
	()Back end tools(fixed)	4X [φ20-ER16]
Motors	Main	5.5/7.5KW	5.9KW
	Sub	1.5/2.2KW	3.9KW
	Cross	1KW	1KW
	Drive	0.75KW	1KW
	Coolant	0.4KW
Others	Coolant tank capacity	200L
	Lubrication tank capacity	1.8L
	Central Height	1,000mm
	Weight	4,500Kg
	(××)The size (L×W×H)	2760×1572×1882mm
NC NC Control	/ Controllable Axes	7axis/4axis
	LCD	LCD 10.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Hand wheel	Standard
	/ Synchronous/hybrid control	Standard
	Helical interpolation	Standard

Items
Standard units	Floodlight	The product output device
	Transformer	Centralized lubrication system
	C+ The spindle axis C + brake	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Front power tools
	Oil cooler	4 4axis cross tools
	Chip conveyor	cut-off tool detector
	High pressure pump	45 4axis or 5axis I.N tools
	Thread whirling rings	10 10axis I.N tools

Detailed Photos
Application
Applications of Swiss MachiningSwiss machining technology, initially a beacon in the watchmaking arena, has dazzled its way into a plethora of industries, courtesy of its unparalleled precision and versatility. This avant-garde technology has woven its prowess into the fabric of various sectors, empowering industries to achieve remarkable feats with:1) AerospaceIn the aerospace field, the demand for finely detailed, highly specialized components is exquisitely met by Swiss machining. This sector relies heavily on these meticulously designed lathes, which craft crucial parts from top-tier materials such as aluminum alloys and steel with impeccable precision. The outcome is the flawless production of indispensable items like fans and fasteners, designed to precision perfection.2) Medical devicesIn the medical domain, Swiss-type lathes are the cornerstone in creating intricate, precision-focused components. These machines are essential in manufacturing surgical instruments and implants, adhering to the stringent accuracy standards that define the medical industry, ensuring reliability and safety.3) ElectronicsIn today's world, where electronics are being honed to achieve unmatched miniaturization and sophistication, traditional lathes fall short. CNC Swiss machining emerges as the hero, offering precision excellence for crafting connectors, pins, and intricate electronic components, perfectly catering to the leading-edge demands of modern technology.4) AutomotiveFacing the ever-evolving and complex mechanical challenges in the automotive industry, Swiss machining technology becomes an indispensable ally. It plays a pivotal role in developing sophisticated components, propelling automotive engineering to pioneering heights.
By integrating Swiss machining, automotive manufacturers streamline the production of critical elements such as suspension components, carburetor covers, and engine parts. This strategy not only delivers dramatic cost savings but also refines production processes, significantly reducing manufacturing timelines while boosting efficiency.
Our Advantages
1. Professional Supplier: Entrust your needs to our distinguished team of seasoned experts, celebrated for their unparalleled passion and proficiency in delivering state-of-the-art precision machinery solutions. Our steadfast commitment guarantees each product is meticulously crafted to not only meet your specific requirements but also surpass your highest expectations.
2. Best Quality: Experience the pinnacle of excellence with our machines, engineered to provide unrivaled reliability and exceptional performance. Our fervent dedication to quality is interwoven into every piece of machinery, exemplifying our tireless quest for perfection and exemplary craftsmanship.
3. Best Service: Dive into an extraordinary customer service experience where your satisfaction reigns supreme. From your first inquiry to the ultimate delivery, we pledge to offer a seamless, gratifying journey, ensuring every interaction triumphantly exceeds your expectations.
4. Best Price: Access remarkable value through our competitively priced solutions. Our commitment lies in delivering superior quality and service, ensuring you enjoy unparalleled craftsmanship and cost-effectiveness without any compromise.
Packaging & Shipping
Company Profile
Liaocheng Wayne New Materials Co., Ltd. proudly leads the forefront of CNC Router and Laser Engraving & Cutting advancements. Nestled in the dynamic and innovative city of Liaocheng, Shandong, our extensive product range showcases a stellar array of machinery. This includes our exceptional large-scale ATC Woodworking Router Machines, cutting-edge 5-Axis CNC Router Machines, and steadfast CNC Advertising Router Machines. Additionally, we provide precise CNC Marble Engraving Machines, efficient CNC Plasma Cutting Machines, advanced CNC Metal Mold Machines, and adaptable CNC Lathe Machines. Each is meticulously engineered to fulfill the diverse demands of our esteemed clients. Our high-precision Swiss Type Lathe Machines, powerful Fiber Laser Cutting Machines, versatile CO2 Laser Cutting & Engraving Machines, as well as our state-of-the-art Laser Marking Machines and highly effective Laser Welding Machines, epitomize impeccable craftsmanship. By embracing pioneering technology and adhering to uncompromising quality standards, we remain committed to establishing the 'Wayne' brand internationally. Our premium products have traversed the globe, reaching over 100 countries including key markets in the United States, Germany, Indonesia, Canada, Australia, Russia, and extensively throughout Southeast Asia. This extraordinary global reach solidifies our position as a distinguished international leader in our industry.
Our core mission is to deliver unparalleled service excellence to our valued customers. Whether you need standard solutions or tailored configurations, we excel in delivering precisely customized solutions that meet your unique needs. Each component of our state-of-the-art machines is carefully sourced from globally acclaimed suppliers and innovators in machine control, ensuring not only exceptional performance but also unmatched reliability. Our machines integrate seamlessly into a myriad of industries and artistic endeavors, such as woodwork, intricate metal and stone work, aluminum fabrication, boat building, shop fitting, and precision mold making. Backed by a dedicated and highly skilled after-sales service department, an expert sales team, and stringent quality assurance protocols, you can make purchases from us with absolute confidence. We warmly invite customers and prospective business partners worldwide to engage in cooperative ventures with us, setting the stage for shared success. Offering top-tier service, impeccable quality, and competitive pricing, Wayne stands as your ultimate choice. We are eager to collaborate with you to generate greater value together. Reach out to us with your requirements, and let's initiate a productive dialogue. We eagerly await your contact, ready to embark on a promising journey together.
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price

---
