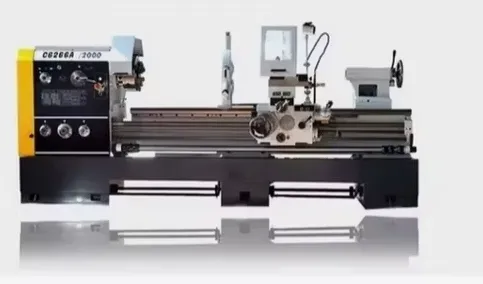

China Metal Lathe Machine Price C6266A Cq6280 Horizontal Metal Lathe Machinery with CE

Product Description

China Metal Lathe Machine Price C6266A CQ6280 Horizontal Metal Lathe Machinery with CE
Product Description
Standard accessories:
Reduction sleeve, centers, 3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, machine base, work lamp, foot brake, coolant, change gears, tool box(include tools 1 set)
Technical Specifications:

Specifications	Unit	C6266A	CQ6280
Swing Over Bed	mm	660	800
Swing Over Cross Slide	mm	440	570
Swing in Gap	mm	900	1035
Length of Gap	mm	250
Distance Between Centers	mm	1500/2000/3000	1500/2000/3000
Width of Bed	mm	400	400
Spindle Nose		D1-8	D1-8
Spindle Bore	mm	105	105
Taper of Spindle Bore	mm	Φ113(1:20	Φ113(1:20
Spindle Speed Step	rpm	16	16
Range of Spindle Speed		25~1600	25~1600
Compound rest travel	mm	230	230
Cross slide travel	mm	368	420
Max. Section of Tool	mm	25x25	25x25
Leadscrew Pitch		12 or 2T.P.I	12 or 2T.P.I
Longitudinal Feeds Range in Metric Lead Screw	mm/rev	0.044~1.48 (25 kinds)	0.044~1.48 (25 kinds)
Cross Feeds Range in Metric Lead Screw	mm/rev	0.022~0.74mm/rev (25 kinds)	0.022~0.74mm/rev (25 kinds)
Threads metric pitches	mm	0.45~120 (54 kinds)	0.45~120 (54 kinds)
Threads imperial pitches	T.P.I	7/16~80(54 kinds)	7/16~80(54 kinds)
Threads Diametrical pitches	DP	7/8~160(42 kinds)	7/8~160(42 kinds)
Threads Module pitches	MP	0.25~60 (46 kinds)	0.25~60 (46 kinds)
Tailstock quill diameter	mm	90	90
Tailstock quill travel	mm	235	235
Tailstock quill taper		MT5	MT5
Main Motor Power	kw	7.5(10 HP)	7.5(10 HP)
Coolant Pump Power	kw	0.1(1/8HP)	0.1(1/8HP)
Overall Dimension	mm	3210/3710/4710×1230×1600	3210/3710/4710×1230×1670
Packing Size (L×W×H)	mm	3240/3740/4740×1140×1840	3240/3740/4740×1140×1910
Net Weight	kg	3065/3345/3710	3175/3455/3820kg
Gross Weight	kg	3535/3835/4310	3695/4005/4495kg

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
