Inverted Wire Drawing Machine/Metal Wire Drawing Machine

Product Description

Product Description
The DL series wire drawing machine is a prefabrication equipment for metal products, widely used in screw, nut ,bolt making area. The purpose is to pull metal wire or bar of the product manufacturing enterprise, which is produced and transported by the steel manufacturer to standard parts, through the wire drawing machine, the diameter of the wire or bar, the roundness, internal metallographic structure, surface finish and straightness are all meet the raw material processing requirements for the production of metal parts such as standard parts.
There are many suitable drawing materials for straight wire drawing machine, including welding rod; welding wire (gas shielded wire, submerged arc wire, flux cored wire, etc.); steel wire (high, medium and low carbon steel wire, stainless steel wire, tire steel wire, hose steel wire, spring steel wire, steel cord, etc.); electric wire (aluminum clad steel wire, copper wire, aluminum wire, etc.); alloy wire, etc.

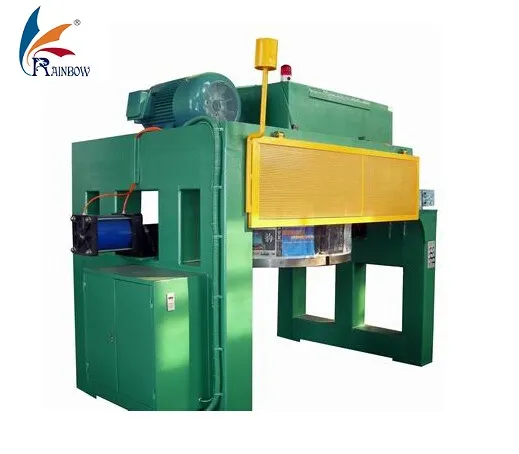

Machine picture
Specification

Model	DL800	DL1000
Paying off mode	Passivity rotating paying off	Passivity rotating paying off
Incoming dia	Φ 8-Φ 5.5mm	Φ 15-Φ 9mm
Outcoming dia	Φ 7.3-Φ 4.5mm	Φ 13.6- Φ 7.69mm
Compressibility	≤ 25%	≤ 20%
Incoming strength	≤ 850 Mpa	≤ 850 Mpa
Outcoming speed	70 m/min	60 m/min
Reel dia	800 mm	1000 mm
Motor power	37KW variable frequency motor	55KW variable frequency motor
Control style	variable frequency motor+transducer control	variable frequency motor+transducer control
Transducer	INOVANCE	INOVANCE

Our Company
Our company comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation,now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers. We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service,our main products include wire drawing machine,Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace. With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and we invested in some fastener equipment manufacturers and built our own bolt maker,mesh belt furnace and zinc plating line factories.We do these factories' foreign market developing and have received highly praises from a lot of customers. We have established reputation in countries such as India, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.

---
