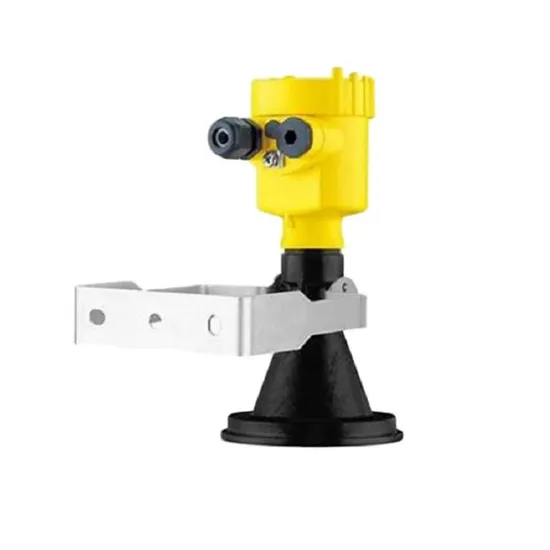

for Liquid, Solid Test High Quality 80GHz Radar Level Meter Level Sensor

Product Description

Product Description 1>>. Radar Level Transmitter is high-frequency level measurement instruments with the maximum measuring distance up to 100 meters. The antenna is further optimized, and the new-type microprocessor can perform higher rate of signal analysis and processing,making the instrument available for complex measurement conditions,such as reactors,solid silos. 2>>. Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals ( because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost Instantaneous).

Grade	Industrial
Warranty	12 month
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	Qingdao,China
Brand Name	RSTONE
Model Number	RD-
Material	Aluminum alloy, stainless steel
Transmitting frequency	76GHz~81GHz
Measuring range	0:03 m to 60m, 0.08 m ~30m, 0.6m~120m
Measuring accuracy	Plus or minus 1 mm
Beam Angle	3 ° / 8 °
Product name	Radar Level Meter Gauge
Use the dielectric constant range	> = 2
Range of power supply	15 to 28.0VDC,
Method of communication	MODBUS Bus (Four Wire)
Signal output	4~20mA or RS-485: 4~20mA +Hart
Field operation/program ming	128 x 64 dot matrix display /4 keys Upper computer setup software can be configured
Industrial temperature/humidity	T0:-40~85ºC/≤95%RH; T1:-40~200ºC; T2:-40~500ºC; T3: - 40 ~ 1000 ºC
Case material	Aluminum alloy, stainless steel
Antenna type	Lens antenna/anti-corrosion type antenna/quartz isolation flange
Product size	Ø 100 * 270 mm
Process pressure	0.1 ~ 2 mpa
Cable inlet	M20 * 1.5
Recommended cable	AWG18 or 0.75mm²
Level of protection	IP68
Explosion-proof rating	ExdiaIICT6
Installation method	Thread or flange
Packing box size	370*270*180mm
Net/gross weight	2.480 Kg / 2.995 Kg
Fault output	3.8mA, 4mA, 20mA, 21mA, hold

Product Features
Product Application
Packaging & Shipping
Company Profile
Qingdao Restong automation instrument co., LTD is a domestic emerging automation enterprise specialized in the development, design and production of material level instrument products. In recent years, it has been conducting academic discussions and research projects with relevant research institutions at home and abroad. At present, the international advanced technology, combined with the market demand, has developed a series of tuning fork level switch, radio frequency capacitor level switch, magnetostrictive level meter, radio frequency capacitance level meter, microwave material level switch, radar level meter, tuning fork density meter and other products, product performance has reached or close to the domestic advanced level.The company's products are mainly for dealers and end users all over the country, suitable for all kinds of modern industrial enterprises. With the core value of "quality first, service with heart" over the years, Qingdao Restong has met the needs of customers, shaped the good reputation of the enterprise and promoted the sustainable development of the enterprise and the continuous growth of the team through professional technology and unremitting efforts. At the same time, a perfect after-sales service system has been established, which can quickly solve the problems encountered by partners and terminal operators when using the products. We believe that through our continuous efforts and pursuit, qingdao restong will continue to develop and grow.The company's products in the continuous innovation, upgrading, has passed the ISO9001 quality system recognition, SIL safety certification, explosion-proof certification. Research, development, design, production are strictly in accordance with international standards, each link has strict operating procedures, to ensure that different products in different industries demand.
