Ruihang High Speed PVC Foam Board Extrusion Production Line

Product Description

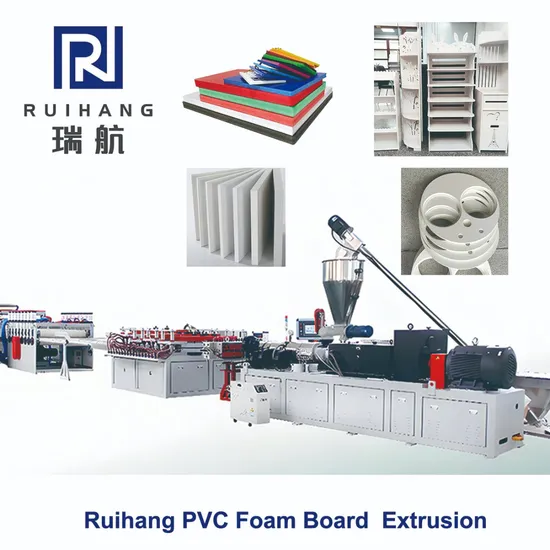

Ruihang PVC Foam Board Extrusion Production Line
Production process of PVC crust foam board:
Ingredients--high-cold-mixing--extrusion--foaming--cooling shaping--spraying--traction
Production line composition:
Mixer, twin-screw extruder, mold, cooling and shaping machine, sprayer, tractor, cutter and other auxiliary machinery
The products produced have the following characteristics:
Soundproof, sound absorbing, heat insulating, and heat preservation properties.
The board is flame retardant, can self-extinguish without fire, and can be used safely.
Moisture-proof, mildew-proof, non-absorbent, and excellent shockproof performance.
After being made with a weather-resistant formula, its color can remain unchanged for a long time and is difficult to age.
It is light in texture and easy to store, transport, and construct.
It can be constructed using ordinary wood processing tools. It can be drilled, sawed, nailed, planed, and glued like wood. It can be suitable for thermoforming, heated bending, and folding.
Main technical parameters:

Extruder Specifications	Product Width (mm)	Product Thickness (mm)	Main Motor Power (kw)	Maximum Extrusion Output (kg/h)
SJSZ-80/156	1220	5-20	75	400
SJSZ-92/188	1560	8-18	132	550
SJSZ-92/188	2050	8-15	132	550
SJSZ-80/156+65/132	1220	5-20	75+37	500

Detailed Photos:
Products Photos:

---
