Vertical Reach 38.1 M Truck Mounting Concrete Line Pump Syg5260thb 390c-10

US$140,000.00
1-2 Pieces
US$130,000.00
3+ Pieces

Basic Info.

Model NO.
SYG5260THB 390C-10
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
160/96 M³/H
Feeding Height
1380mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
Red
Dimension(L*W*H)
11250*2550*3910mm
Max. Vertical Conveying Distance
38.1m
Max. Horizontal Conveying Distance
33.4m
Weight
26800 Kg
Pressure
7/12 MPa
Output
160/96 M³/H
Horizontal Reach
33.4m
Reach Depth
23.5m
Vertical Reach
38.1 M
Engine Type
D12c5-490e0
Engine Max Net Power
348/1900 Kw/Rpm
Emission Standard
China V
Capacity of Fuel Tank
600 L
Displacement
12.12 L
Max.Speed
90 Km/H
Transport Package
Standard Ocean Freight
Specification
11250*2550*3910mm
Trademark
Top brand
Origin
China
HS Code
8705909100
Production Capacity
350piece/Year

Packaging & Delivery

Package Size
1125.00cm * 255.00cm * 391.00cm
Package Gross Weight
26800.000kg

Product Description

product title

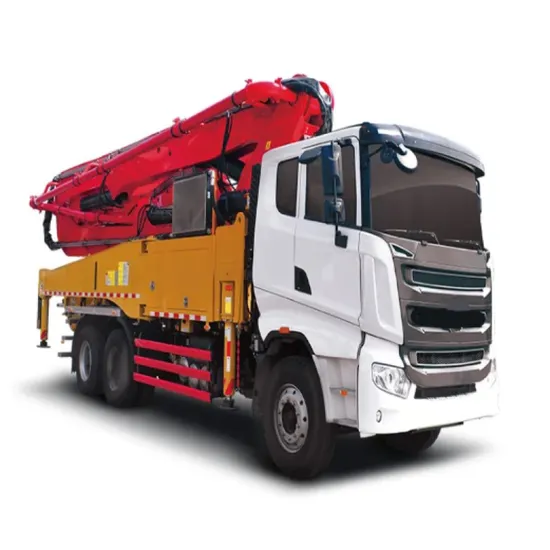

Truck Mounted Concrete Pump 38.1m 155cbm/h SYG5260THB 390C-10
Product Description
Highly Reliable
· · Optimized essential parts with ultra-high-strength steel
· · Open hydraulic system & high configuration
· · Customized chassis & Imported Engine
· · Stable signal & precise control Strong Pumping
· A 10% increase in pumping efficiency
· smoother flow, less blockage, and meet long-time pumping need
· Dual-purpose machine: quickly transforms into a line pump
· Various boom types & flexible working posture
· Less site limitation, smaller footprint, more comprehensive placement range
Extremely Economical
· Advanced fuel combustion & intelligent power matching technology
· The best cost performance choice
· Easy maintenance, cost-saving and time-saving
· The industry-leading most extended service life of wear parts
Ultimate User Experience · High configuration cab & exceptionally comfortable driving experience
· Single-button operation design and optimized flow of the entire process
· MachineLink+ & all in your control
· 24/7 rapid troubleshooting & spare parts supply guaranteed
Product Parameters
Model
SYM5350THB1E
Engine type
D12C5-490E0
Engine max net power
348/1900 kW/rpm
Emission standard
China V
Capacity of fuel tank
600 L
Displacement
12.12 L
Max.speed
90 km/h

Detailed Photos
