12t Cutting Press/Swing Arm Cutting Press

Product Description

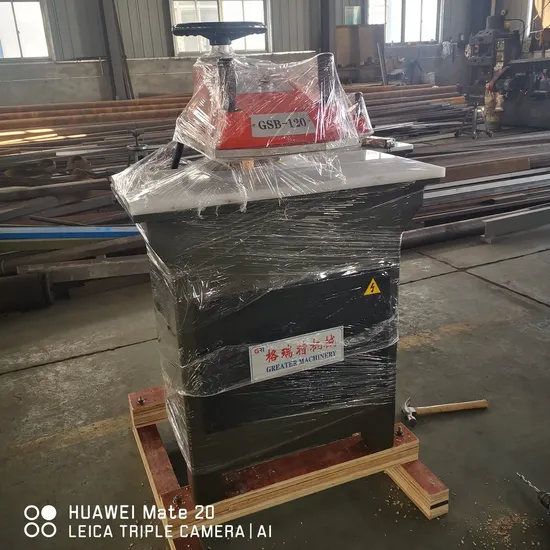

12T swing arm cutting machine
Features:
1) Safe, two-hand trip operation; the sway arm can swing freely. Best operation line
of sight
2) Used to cutting plastic boards, leather, fiber, cotton fiber, paper cartons and
other similar materials, especially suitable for shoe industry
3) Equipped with lubricating system to lessen wear and prolong service life
4) Lower limit of stroke is controlled by a time-lapse circuit with high precision,
so it can make high-quality shoes
5) People can adjust height of sway arm from table by simple handle, convenient and stable
Main Data:

Model	GSB-120
Cutting Force	12 Tons
Sway Arm Width	350mm
Stroke Adjustment	0-60mm
Distance Between Upper Table And Lower Table	60-120mm
Table Area	900×400mm
Electrical Supply	3x440/415/400/380/220/200V, 50/60 Hz single 240/220V, 50/60 Hz
Motor Power	0.75kw
Packing Size(L×W×H)	900×800×1400mm
Weight (Without Oil)	500Kg
Hydraulic Oil (46#)	35 Liters

---
