UL94 V-0 Fire Resistance Polycarbonate Sheet for Building Material

Product Description

UL94 V-0 Fire Resistance Polycarbonate Sheet for Building Material
Anhui Shenghang Plastic Co., Ltd. is a high-tech enterprise specializing in the R&D, production, and sales of polycarbonate PC sheets and pipes, acrylic sheets and pipes, and product processing in China. Shenghang Plastic has a strict quality management system and rich foreign trade experience. Its products are exported to more than 30 countries and regions in the world.

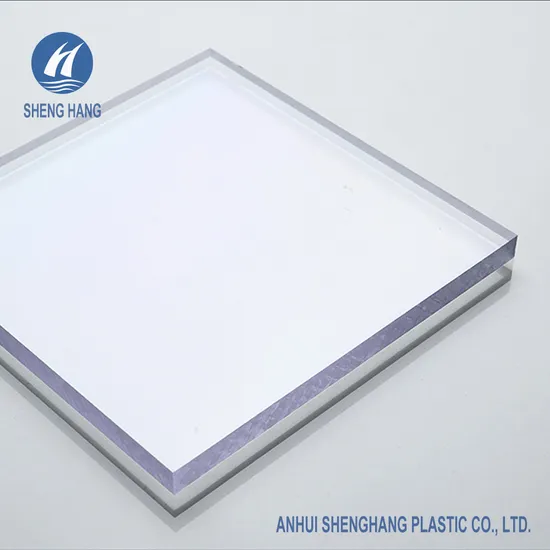

Shenghang Plastic Polycarbonate Solid Sheet is made of virgin polycarbonate resin by the latest coextrusion technology. It has high transparency and high impact strength, but the weight is only half of the glass. Polycarbonate solid sheets are widely used in roof panels of various buildings, industrial processing products, safety protection fields, etc.
In addition, Shenghang Plastic polycarbonate solid sheet is very suitable for processing. It can be processed into products with different shapes according to the needs of customers. Shenghang Plastic solid polycarbonate sheet has a double-sided UV resistant coating to ensure an outdoor service life of more than 10 years.
PRODUCT ADVANTAGES
High impact resistance High transparent High light transmittance Lightweight Weather-resistant Fire resistant High sound insulation Long life span Excellent resistance to chemicals UV protection Temperature resistant Easy to install Superb thermal insulation Strong plasticity, stable size, suitable for processing
PRODUCT SHOW
SPECIFICATIONS

01	Product Name	Solid Polycarbonate Sheet
02	Thickness Range	1.2mm ~ 30mm
03	Width	1220mm, 2000mm, customized(Max.2500mm)
04	Length	2440mm, 3000mm, 30 meters per roll, customized
05	Standard Size	1220*2440mm, 2000*3000mm
06	Color	Transparent, bronze, blue, green, white, gray, black, yellow, orange, red, customized
07	Certification	SGS, Rosh, CNAS, ISO9001:2008, Fire-resistant Test Report
08	Surface Texture	Flat, Polished/Polished
09	Quality Warranty	Limited 10 years
10	Design Style	Modern
11	Fire Resistance	UL94 V-2, UL94 V-0
12	Scratch Resistant	HB, H, 2H
13	UV Protection	50 Micron Anti-UV Coating
14	Service Temperature	-40~120 ºC (Degrees Celsius)
15	Technology	Co-extrusion
16	Delivery Time	Normally 5-7 days after receipt of deposit
17	Sample	For free (Please contact us for samples)
18	After-sale Service	Online technical support, Onsite Installation, Onsite Training

TECHNICAL DATA

FEATURES	TEST METHOD	TEST CONDITION	UNIT	DATA
Density	D-792		g/cm3	1.2
Heat Deflection Temperature	D-648	Load:1.82 MPa	ºC	135
Short-term Service Temperature			ºC	-50~+120
Long Service Temperature			ºC	-50~+100
Linear Expansion Coefficient	D-696		cm/cmºC	6.5x10-5
Thermal Conductivity	C-177		W/m K	0.21
Yield Tensile Strength	D-638	10mm/min	Mpa	65
Tensile Strength at Break	D-638	1mm/min	Mpa	65
Yield Elongation	D-638	10mm/min	%	6
Elongation at Break	D-638	10mm/min	%	>90
Elastic Tensile Modulus	D-638	1mm/min	Mpa	2300
Bending Strength	D-790	1mm/min	Mpa	100
Flexural Modulus	D-790	1.3mm/min	Mpa	2600
Shock Drop	(ISO 6603/1 E50)	3mm sheet	J	160
Rockwell Hardness	D-785		R Scale	125R
Light Transmittance	D-1003	3mm Transparent	%	90
Haze	D-1003	3mm Transparent	%	<0.5
Yellowing Index	D-1003	3mm Transparent	YI	<1

FEATURES
1) Good light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Flame resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: 1/2 of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um on one side or both sides anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Fine plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing...
PRODUCT CATEGORIES
TYPICAL APPLICATIONS
1) Unusual decorations, corridors, and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings;
3) The transparent containers, front windshields of motorcycles, airplanes, trains, ships, vehicles, motorboats, and submarines;
4) Advertising lightbox, telephone booths, street nameplates, and signboards;
5) Instrument and war industries - windscreens, shields; polycarbonate sheet;
6) Lighting materials, walls, roofs, windows, doors, screens, skylights, and other high-quality indoor decoration materials;
7) Sound insulation shields(acoustic barrier) on expressways and city overhead highways;
8) Agriculture greenhouses and sheds; Ceiling material for awnings, canopy, carport, balcony.
9) Security products - shield, helmet, fences for bus and taxi drivers, protective cover, and viewing window for industrial equipment;
PC SHEET PROCESSING
Shenghang Plastic Polycarbonate Solid Sheet has excellent dimensional stability, which is very suitable for deep processing. The processed products of PC solid sheets are widely used in industry, security, construction, new energy vehicles, and many other industries.

Shenghang Plastic can provide professional customized plastic sheets, especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, etc.

Welcome customers to provide drawings or samples, and negotiate custom processing business. As for customized products, our minimum order quantity is one piece. You can cooperate with us for bulk orders after the samples are tested and approved.
PACKING & SHIPPING
FACTORY TOUR

---
