Product Description
Product Description
This machine is suitable for the slitting of metallic material: aluminum foil, copper foil, PET CCL, BOPP, PET, CPP, PE, PVC, film, paper, etc.
Surface coiling + center coiling double structure in frond of and behind rewinding mode
PLC, automatic loading, slitting precision

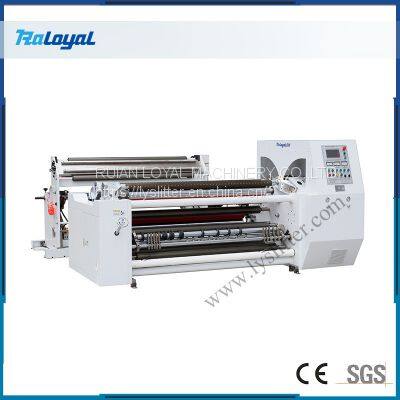

Features of HC-C650/1300/1600B Surface Coil Slitting Machine
Use
This machine is suitable for the slitting of straw paper, aluminum foil, copper semiconductor, PET CCL, BOPP, PET, CPP, PE, PVC, film, paper, etc.
Characteristic
-Servo motor control, automatic taper tension, the center surface coiling method;
-Frequency control, to maintain smooth operation in the acceleration;
-Automatic meter, alarm and other functions;
-Rewinding using A, B inflatable shaft structure, back-style rewinding, loading and unloading easy operation;
-Unwinding using optical edge correction method;
-round knife (film using flat knife structure) slitting waste automatic discharge device;
-pneumatic automatic shaft / hydraulic automatic shaft-free structure (customers choose their own configuration).
Specifiction HC-C650/1300/1600B Surface Coil Slitting Machine
Technical parameter
1 Machine model HC-C650B
HC-C1300B HC-C1600B
2 Unwinding width 650mm 1300mm 1600mm
3 Slitting thickness 12g/m^2~300g/m^2
12g/m^2~300g/m^2 12g/m^2~300g/m^2
4 Standard slitting width 5~650mm
5~1300mm 5~1600mm
5 Slitting speed 300m/min
300m/min 300m/min
6 Unwinding roll diameter Φ600mm
Φ1000mm Φ1000mm
7 Rewinding roll diameter Φ600mm
Φ600mm Φ600mm
8 Main motor power 3kw
7.5 kw 7.5 kw
9 Rewinding motor power 2×3kw
2×7.5kw 2×7.5kw
10 Machine weight 2500kg 3000kg 3500kg
11 Installation dimension 2500*1850*1800mm
3150*2500*1800mm 3150*2800*1800mm
Ruian Loyal Machinery Co, Ltd., is a professional slitting machine manufacturer, we provide slitting and rewinding machine, copper foil slitting machine, Raloyal packing solution and etc. Contact us to know more.
>>
