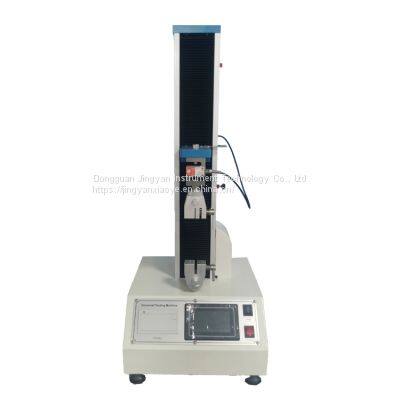

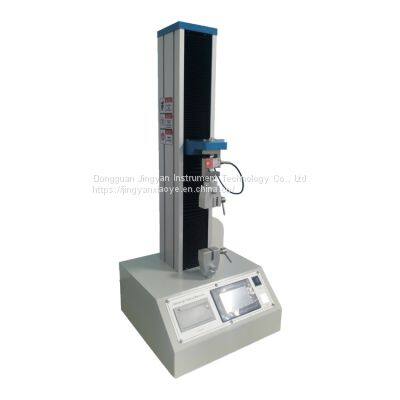

This machine is to test the tensile strength, compressive strength and elongation, elongation, stripping, tear, bending, bending and compression of all kinds of materials, semi-finished products and finished products, which is suitable for metal, plastic, rubber, textile, synthetic chemical products, wire and cable, leather industries use.
Capacity
| 1000N
|
Unit conversion
| kgf, N
|
Resolution
| 1/10000
|
Power precision
| <±0.5%
|
Test speed
| 0-300mm/min
|
Test space
| 320MM (without the jig)
|
Test width
| Around 120mm
|
Display data function
| The biggest force, displacement (deformation), time, breakpoint stop, power outage, fracture value, displacement stop
|
Graph data
| The biggest force, displacement (deformation), time (need to match the software and computer)
|
Form
| Maximum power point, the breaking point, displacement take point, test time, test pattern, the mean, standard deviation value (need to match the software and computer)
|
