Industrial Professional End Mill &Drill Complex Re-Sharpening Machine Series

Product Description

FUNCTION/FEATURE
End mill *Applicable to (2\3\4-fute)tungsten carbide and high-speed steel end mill
*Grind rear Inclined angle,blade edge and front inclined angle.
*For different end mill grinding,no need to change grinding wheel.
*Easy to handle. Finish grinding in 1 minute.
*Mill cutting edge can be adjusted suitable for materials to be processed.
Drill
1.Can grind standard twist drill of direct shank and cone shank
2.Applicable to tungsten carbide and high-speed steel drills re-sharpening.
3.Length of drill to be ground has no limitation.

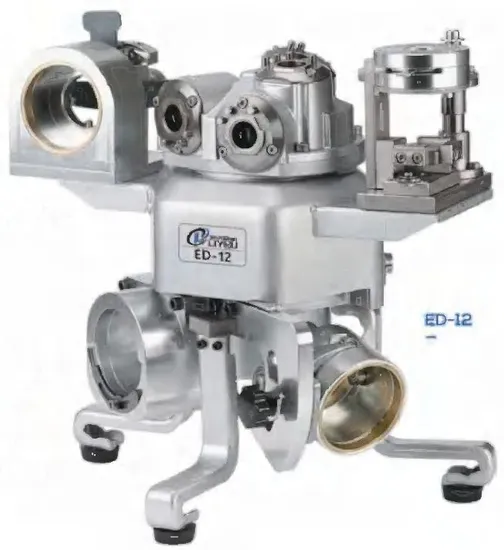

Detailed Photos
SPECIFICATION

Mode	Applicable diameters	Applicable futes	Axial angles	Grinding wheel	Power	Grinding scope of the apex angle	Rated speed	Outer dimensions	Weight/Power	Normal accessories
ED-12 ED-12H (with fine grinding)	End mill φ2-φ12mm Drill φ3~φ20mm	2flutes, 3flutes, 4flutes Twist drills	Secondary clearance angle 6° Primary relief angle 20° End gash angle 30°	E12SDC(or CBN) EDCBN(or SDO	220V±10%AC	90°~140°	6000 rpm	320x350x330(mm)	18KG/300W	Collet*7pes,2flutes holder*8pcs,3 flutes holder*8pcs,4 flutes holder*8pcs,case*1pcs,Hexagon wrench*2pcs,controller*1pcs,Chuck group*1 Group
ED-12A	End mill φ2~φ12mm Drill φ3-φ20mm	2flutes, 3flutes,4flutes Twist drills	Secondary clearance angle 8° Primary relief angle 22° End gash angle 30°	E12SpCA(or CBN EDCBN(or SDO	220V±10%AC	90°-140°	6000 rpm	320x 350x330(mm)	18KG/300W	Collet*7pcs,2flutes holder*8pcs,3 flutes holder*8pcs,4 flutes holder*8pcs,case*1pcs,Hexsgon wrench*2pcs, chunk group*1 group, controller*1pcs,Gaskets*6pcs,square flutes holder*1pcs
ED-20 ED-20H (with fine grinding)	End mill φ4-φ20mm Drill φ3~φ20mm	2flutes, 3flutes, 4flutes Twist drills	Secondary clearance angle 6° Primary relief angle 20° End gash angle 30°	E20SDC(or CBN) EDCBN(or SDO)	220V±10%AC	90°~140°	6000 rpm	370x 350x380(mm)	26KG/600W	Collet*8pcs, 2flutes holder*8pcs,3 flutes holder*8pcs,4 flutes holder*8pcs,case*1pcs, Heagon,Chunk group*1 Group,wrench*2pcs,controller*lpcs

Grinding wheel: SDC wheels used for tungsten carbide tools,CBN wheels used for high-speed steel tools.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Shipping
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
Company Profile

Xuetai Technology (Tianjin) Co., Ltd. Was established in 2024 and is headquartered in the Tianjin Binhai New Area Free Trade Pilot Zone (Airport Area). Since the founding of the company, Its business team have focused on the sales and after-sales service of imported CNC machine tools in Chinese Mainland for 20 years. With the continuous improvement of the quality of Chinese manufacturing and global competitiveness, the company has decided to increase its foreign trade business on the basis of domestic trade, and is committed to promoting and applying Chinese electromechanical products in the international market, covering more than 100 countries and regions around the world. Our main business is the import and export of CNC machine tools and their supporting automation and auxiliary equipment, and we have established long-term cooperation with many internationally renowned brands and Chinese suppliers. With a professional trade team, we accurately grasp market trends, efficiently handle customs clearance, logistics and other links, and provide customers with one-stop trade solutions.The company always adheres to the concepts of integrity, innovation, and win-win, and is committed to building cross-border commercial bridges, steadily advancing on the international trade stage, continuously expanding its business scope, and achieving mutually beneficial cooperation and common development among multiple parties.

---
