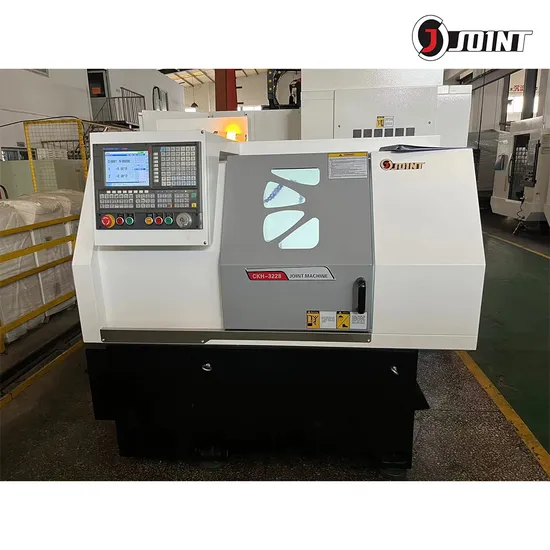

CNC Machine Low Price Ckh-3228 Small Lathe Machine with Gang Type Tool

Product Description

Product Introduction: This series of lathe machine is suitabloe for processing axis part, arcs, thread, cone and the face of inner and outer of rotating bodies.
Product features: 1.Flat bed type equipped with Taiwan high accuracy linear way, promoted the speed and stability.

2.Angular contact spindle bearing, strengthened the rigidity and accuracy of spindle , promoted the cutting ability.
3.Mid-screw, strengthened the stability when the machine running.
4.High effective, high precision and high cost performance.
Product details: 1. Spindlebox: High speed, maintenance free independent spindle
2. Tailstock: Lengthened and integrated tailstock
3. Bed: Integral casting for and an base
4. Bed saddle/slide: Widen, thickening, integral casting.
7
Product specifications:

Item	Unit	CKH-3228
Bed type		Flat type
Max swing diameter over table	mm	Ø320
Max swing over turret	mm	Ø156
Max processing length	mm	Ø280
Spindle motor power	kw	3.7
Spindle head		A2-5
Collet chuck		42
Spindle speed	rpm	3000
Spindle through hole diameter	mm	48
Bar diameter	mm	Air-operated/Hydraulic/Manual
X axis travel	mm	250
Z aixs travel	mm	220
X axis rapid movement	mm	12
Z aixs rapid movement	mm	15
Tool post		Gang tool
Chuck power		Manual
Guide way		Linear way
Net weight	kg	1300
Demension	mm	1850*1300*1700

Standard accessories:

1. GSK TC3 control system; 5.5kw inverter speed spindle motor
2. Spindle three speed manual gearbox transmission; Ø82 spindle hole diameter
3. 4 positions tool turret
4. tool and toolbox
5. leveling pad
6. Ø250 manual 3-jaw chuck
7. Fully closed cover
8. Auto lubrication system
9. Cooling system
10. Hand unit
11. Working light
12. Manual tailstock
13. Technical documents

Optional accessories:

1. 6 positions tool turret
2. Hydraulic tailstock
3. Manual solid chuck change to solid hydraulic chuk
4. Solid hydraulic chuck change to hollow hydraulic chuck
5. FANUC system
6. SYNTEC control system
Package:

Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !

---
