High-Performance Three-Phase Voltage Regulator for Industrial Power Supply Needs

Product Description

High-Performance Three-Phase Voltage Regulator for Industrial Power Supply Needs
Overview

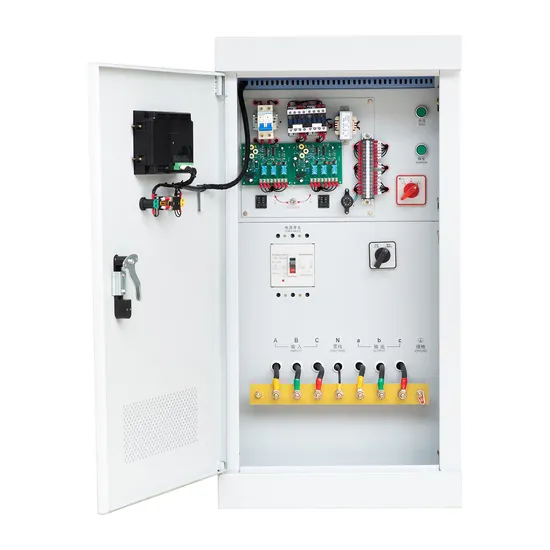

The SBW series three-phase full automatic compensated power voltage stabilizer is designed to maintain a stable output voltage even when the power network fluctuates or the load current varies. Compared to other voltage stabilizers, it stands out with its high capacity, exceptional efficiency, zero wave distortion, and stable voltage adjustment. It is adaptable to various loads, can handle instantaneous overloads, and operates continuously over extended periods. Additionally, it offers seamless switching between manual and automatic control modes. The unit is equipped with robust protective features against over-voltage, over-current, phase failure/sequence errors, and includes delay and error protection. The SBW series boasts a compact size, lightweight design, easy installation, and reliability, making it a superior choice for voltage regulation.
Application
This versatile voltage stabilizer is ideal for a wide range of applications, including post and telecommunications, department stores, elevators, hospitals, schools, printing services, securities, and more.
It ensures a stable voltage supply in various scenarios, such as workshops, mines, medium-sized enterprises, and for critical equipment.
It also supports computer power systems and other essential infrastructure.
TECHNICAL PARAMETERS:

No.	Item Name	Item Description
1	OUTPUT VOLTAGE	380V ±20% ±25% ±30%
2	WORKING FREQUENCY	50 / 60Hz
3	REGULATION MODE	Simultaneous phase regulation
4	CONSTANT VOLTAGE PRECISION	±(1~5%) adjustable
5	NOISE	55 dB
6	INSULATION CLASS	F
7	OPERATION TIME	≥ 100,000 hours
8	PROTECTION CLASS	IP 20
9	VOLTAGE WITHSTANDING	2000V, 1min. Not broken
10	WAVE DEFORMATION / DISTORTION	≤ 0.1%
11	EFFICIENCY	≥ 98%
12	INSULATION RESISTANCE (MΩ)	≥ 5MΩ
13	RESPONSE TIME (ms)	≤ 100ms
14	TIME FOR STABILIZING	When the input voltage jumps 10% relative to the rated value, the stabilizing time is less than 1.5s.
15	PACKING	Plywood packing
16	ALTITUDE	< 2000m
17	RELATIVE HUMIDITY	< 90%
18	AMBIENT TEMPERATURE (ºC)	-15ºC to +45ºC
19	COOLING METHOD	Forced air cooling with fan
20	ANTI-SURGE PERFORMANCE	The input terminal is equipped with a high-energy surge impulse suppressor, which effectively solves the fatal impact of the pulse spike voltage between 10μs and 100μs, such as lightning induction in the equipment.

---
