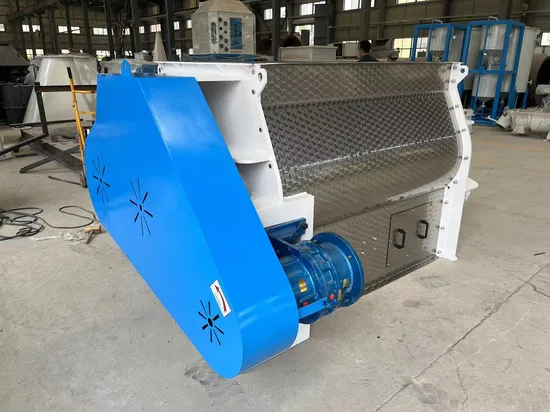

Sshj Double Shaft Paddle Feed Mixer/Mixing Machine

Product Description

SSHJ double shaft paddle feed mixer/mixing machine

LYWF Mixer mixed evenly 30 seconds can be 3% Enhance the, & Large Increase Mixer mixed evenly Value in use
1,The door shaft and the connecting rod mechanism is improved, make sure to open the door when the door opening angle greater than 90 degrees ( feed does not fall on the door ), when the door is closed to lock;
2,Discharge door structure improvement, increasing the sealing engagement surface, better sealing without leakage;
3,The unique design of the return air system, to ensure that the full range of feeding process in a steady air flow;
4,Having high mixing uniformity, there is no dead corner, short mixing time; each batch will be mixed evenly in 30-120 seconds;
5,The discharging of reliable sealing, no leakage, loading capacity of large variable range; fitted with oil adding pipelines, can add a variety of liquid;
The machine structure compact with good shape, covers an area of space less than other mixing equipment.
Parameter of SSHJ series double shaft paddle mixer:

Item	Capacity	Per batch	Time per batch	Uniformity	Power
Model	(m3)	(kg)	(S)	(CV%≤)	(kW)
SSHJ0.1	0.1	50	30~120	5	2.2(3)
SSHJ0.2	0.2	100	30~120	5	3(4)
SSHJ0.5	0.5	250	30~120	5	5.5(7.5)
SSHJ1	1	500	30~120	5	11(15)
SSHJ2	2	1000	30~120	5	15(18.5)
SSHJ3	3	1500	30~120	5	22
SSHJ4(s)	4	2000	30~120	5	22(30)
SSHJ6(s)	6	3000	30~120	5	37(45)
SSHJ8(s)	8	4000	30~120	5	45(55)

1. SSHJ Series Double-shaft High-efficiency Mixer
Main Feature
1.With low speed running, high efficiency and soft mixing and without segregation.
2.Triple-chain driving structure ensures steady running. high mixing uniformity
3.With high homogenous degree, and many kinds of liquid can be added.
4.Big discharging door ensures lower residue.
5.It is widely used in different industries of poultry feed, livestock feed, aquatic feed, premix feed and feed additive.
6.There are different material of carbon ,steel stainless, multi-material as optional. 2.SSHJ Series Single-shaft High-efficiency Mixer
Main Feature
1.It is suitable for feed factory and fertilizer factory, the best choice for feed factory;
2.The mixing time is 1-3 minutes, and the homogeneity Cv≤10%., It can match with liquid adding system
3.The discharge door is adopted to gate type;
4.Many forms of opening door at the bottom, such as pneumatic, electric and gate forms, also can match gas seal, avoid leakage of fine materials.
Welcome to visit our factory in China!
Liyang WeiFeng Equipment Co., Ltd

---
