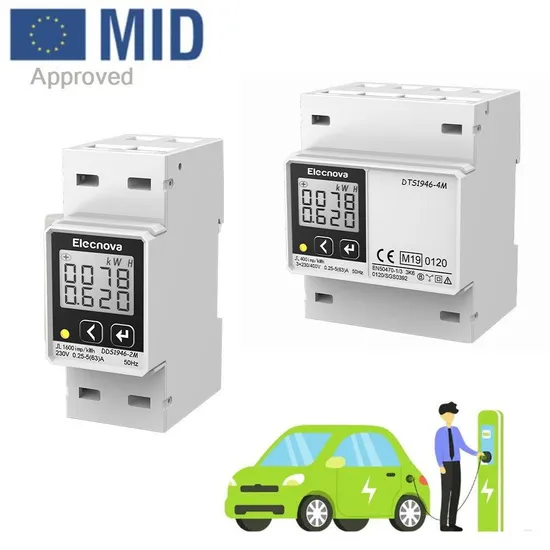

CE Certification Approval Plug-in 3 Phase DIN Rail Mounted Digital Energy Meter

Product Description

MID Certification Approval Plug-in 3 Phase DIN Rail Mounted Digital Energy Meter
Product Description
The din rail mounted electric energy meter adopts advanced energy metering chip, which is designed and manufactured by digital sampling processing technology and SMT process. The series of electric energy meters adopts a modular structure, which is convenient to install and reliable in operation.
Technical Specifications

		DDS1946-1P DDSF1946-1P	DDS1946-2P DDSF1946-2P	DDS1946 DDSF1946	DSS1946 DSSF1946	DTS1946 DTSF1946
Normal Voltage		230V	230V	230V	3*400V	3*230/400V
Current	Direct input	5(40)A	5(100)A	5(100)A	5(100)A	5(100)A
	Via CT input	-	-	1.5(6)A	1.5(6)A	1.5(6)A
Accuracy		Class 1(Optional:Class 0.5S)
Frequency		45Hz~65Hz
Voltage Range		0.8Un~1.2Un
Start Current	Direct input	0.004Ib
	Via CT input	0.002In
Consumption		<2VA
Energy Pulse		1 output, pulse width (80±20%) ms
RTC Error		≤0.5s/day
Communication		RS485, Modbus-RTU, 2-wire, up to 9600bps
IP Degree		Front: IP51
Operating Temperature		-10ºC ~ 55ºC
Storage Temperature		-25ºC ~ 70ºC
Relative Humidity		≤93%
Certificate		CE ISO9001,MID

Typical Wiring


Application
Company Profile

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.

---
