CD6250 Metal Mini Turning Metal Processing Machine Universal Lathe Machine

Product Description

CD6250 Metal Mini Turning Metal Processing Machine Universal Lathe Machine
Universal Lathe Machine Product Features:
1.Bed rail grinding high precision
2.CE conformity,electromagnetic brake can be amounted
3.Screw overload protection
4.Light bars overload protection
5.Fast feed(special order)
6.Precision ball bearings supporting
Standard accessories:
1.3-jaw chuck
2.center¢re sleeve
3.wrenches
4.oil gun
5.operation manual
Optional accessories
1.Steady rest
2.Follower rest
3.4-jaw chuck
4.Face plate
5.Thread chasing dial
6.Longitudinal automatic trip
7.Live center
8.Quick change toolpost
9.Taper copy ruler
10.4-position longitudinal trip
Universal Lathe Machine Technical Parameters:

MODEL	Unit	CD6250B
Max.swing in bed	mm	500mm(19)
Max swing over slide	mm	325mm(13")
Work-piece cutting length	mm	1000mm &1500mm& 2000mm&3000mm
Max.swing over gap	mm	630mm(25")
Effective length of gap	mm	260mm(10 1/4")
Bed width	mm	330mm(13")
Spindle hole	mm	Ø65mm(2 3/15)
Spindle nose		IS0-D6
Spindle taper	mm	Metric 70mm(1:20)
Spindle speeds(number)	rpm	22-1800rpm(15steps)
Metric threads range (kinds)	mm	0.5-28mm(66 kinds)
Inch threads range (kinds)	inch	1-56inch(66kinds)
Module threads range (kinds)	mm	0.5-3.5mm(33kinds)
Pitch threads range (kinds)		8-56D.P(kinds)
Longitudinal feeds range (kinds)	mm/rev	0.027-4.038mm/rev (0.0027-0.15inch/rev)(66kinds)
Cross feeds range (kinds)	mm/rev	0.036-2.019mm/rev (0.0013-0.075inch/rev)(66kingds)
Rapid traverse speed	mm	5m/min(16.4 ft/min)
Screw size diameter / pitch	mm	35mm/6m or 35mm1/4"
Cross slide travel	mm	300mm(12")
Compound rest travel	mm	130mm(5")
Cross-section size of tool shank	mm	25×25
Taper of tail-stock sleeve		MT5
Diameter of tail-stock sleeve	mm	65mm(2 1/2")
Travel of tail-stock sleeve	mm	120mm(4 3/4")
Main motor power	kw	7.5kw
Cooling bump motor	kw	0.125kw
Rapid motor	kw	0.12kw
Packing size (L×W×H)	mm	1000mm 2420×1150×1800mm (96×46×71inch)
	mm	1500mm 2920×1150×1800mm (115×46×71 inch)
	mm	2000mm 3460×1150×1800mm(137×46×71 inch)
	mm	3000mm 4720×1150×1800mm(186×46×71 inch)
Net weight / gross weight(kg)	kg	1000mm	1560/2210kg	1600/2250kg	1640/2290kg
	kg	1500mm	1770/2410kg	1830/2470kg	1870/2530kg
	kg	2000mm	2010/2780kg	2070/2820kg	2130/2860kg
	kg	3000mm	2400*3200kg	2460/3260kg	2580/3400kg

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.

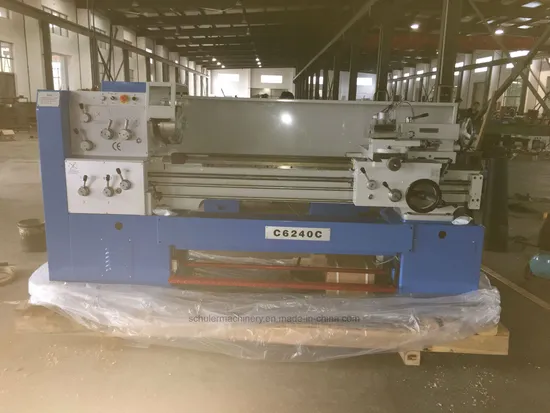

Universal Lathe Machine Details:
Universal Lathe Machine Processing workshop:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Edwin
Tel:+86 18663288651

---
