| US$25.00-26.00 | 10 Pieces (MOQ) |

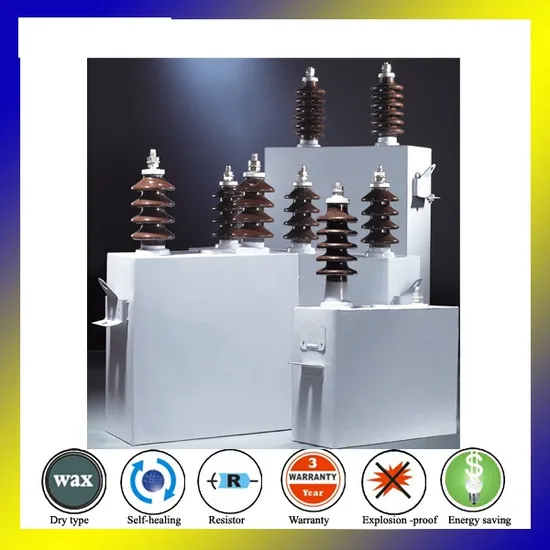

| Series | High Capacity Capacitor 12kv Power Capacitor three phase |
| Rated Voltage Range | 6kv~12kv |
| Capacitor Connection | 3 phase (1 phase on request) |
| Capacitor Frequency | 50/60 Hz. |
| Capacitor Power Range | 50~300 KVAR |
| Dielectric | Metalized polypropylene film with self healing |
| Protection | IP 42 (IP 54 on request) |
| Discharge Resistors | Built in automatic discharge resistors included, less than 75V within 3 minutes after de-energizing the capacitor |
| Tolerance | ±5% |
| Maximum Ambient Temperature | -25 °C--50°C (Other temperature range on request) |
| Average temperature within 24 hours below 40°C&average | |
| temperature with a year below 30°C | |
| Max. Relative Humidity | ≤90% |
| Max. Altitude | ≤2000m (Other altitude on request |
| Over Voltage Tolerance | 1.1 UN (8 hours max. in every 24 hours) |
| 1.15 UN (30 minutes in every 24 hours) | |
| 1.2 UN (5 minutes in every 24 hours) | |
| 1.3 UN (1 minutes in every 24 hours) | |
| Over Current Tolerance | 30% permanently |
| Max. Surge Current | 200 times of rated current |
| Dielectric Loss | ≤0.2 Watt / KVAR |
| Voltage Test | Between terminals: 2.15 Un for 10 seconds. |
| Between terminals to container: 3000VAC for 10 seconds | |
| Safety System | Self protection device |
| Capacitor Case Material | Rust-Proof painted steel |
| Execution | Indoor, minimum distance between units : 50mm |
| Standard | IEC60831 / GBT12747 |
| Insulate level | 6kv rated voltage class 30kv within 1 minutes no puncture and flash 10kv rated voltage class 42kv within 1 minutes no puncture and flash |
| No | Type | Rated Voltage (KV) | Rated Capacity (Kvar) | Rated Capacity (uF) | Weight (Kg) | Size(mm) | Drawing No | |||||||
| A | B | D | F | L | h1 | h | H | |||||||
| 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 | BFM6.3-20-1(W) BFM6.3-30-1(W) BFM6.3-40-1(W) BFM6.3-50-1(W) BFM6.3-100-1(W) BFM6.3-120-1(W) BFM6.3-150-1(W) BFM6.3-200-1(W) BFM6.6/ 3-30-1(W) BFM6.6/ 3-50-1(W) BFM6.6/ 3-70-1 BFM6.6/ 3-90-1 BFM6.6/ 3-100-1 BFM6.6/ 3-120-1 BFM6.6/ 3-150-1 | 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.6/ 3 6.6/ 3 6.6/ 3 6.6/ 3 6.6/ 3 6.6/ 3 6.6/ 3 | 20 30 40 50 100 120 150 200 30 50 70 90 100 120 150 | 1.60 2.40 3.21 4.01 8.02 9.62 12.03 16.04 6.58 10.96 15.35 19.73 21.9 26.3 32.9 | 11 14 16.5 19 31 35 45 54 14 19 24.5 28 31 35 45 | 320 320 320 320 385 385 385 385 320 320 320 385 385 385 385 | 110 110 120 120 145 145 145 170 110 120 120 145 145 145 145 | 350 350 350 350 425 425 425 425 350 350 350 425 425 425 425 | 200 200 200 200 270 270 270 270 200 200 200 270 270 270 270 | 380 380 380 380 465 465 465 465 380 380 380 465 465 465 465 | 90 100 140 170 210 260 350 400 100 170 260 190 210 260 350 | 180 230 260 300 350 400 490 540 230 300 390 330 350 400 490 | 350 400 430 470 520 570 660 710 400 470 560 500 520 570 660 | 1 1 1 1 1 1 2 2 1 1 1 1 1 1 2 |
